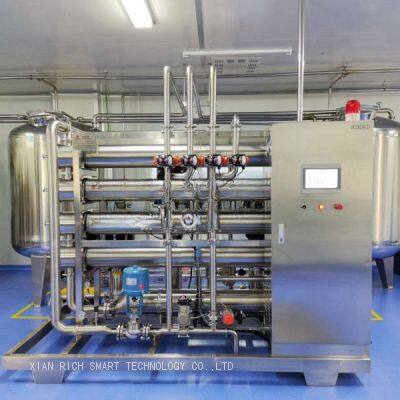

Rolled ultrafiltration membrane filter
Product introduction:
The ultrafiltration membrane system is a precise and efficient filtration system carefully developed and designed by "Rich Intelligence" with the introduction of membrane separation technology. It is widely used in biopharmaceuticals, biological fermentation, animal and plant extraction, food and beverage, cosmetics and other fields. The system has the characteristics of strong versatility, low energy consumption, simple operation, online cleaning, temperature and pressure monitoring, over-temperature protection, flow regulation, and long service life. It is mainly used for material filtration separation, refining, purification and concentration, decolorization and desalination and other process links.
The molecular weight cutoff of the rolled ultrafiltration membrane ranges from 1000 to 200,000 Daltons. The ultrafiltration membrane can intercept large molecular impurities (such as proteins, pigments, polysaccharides, etc.) and pass through the target product; it can also intercept the target product and pass through small molecular impurities (inorganic salts, small molecular pigments, monosaccharides, ash, etc.) and water. It can also separate target products of different molecular weights, thereby replacing traditional activated carbon decolorization, resin impurity removal, crystallization extraction and other purification processes to achieve the purpose of decolorization, impurity removal and product classification.
Application：
Fruit and vegetable juice/beverage clarification and concentration
| Peptide purification
|
Milk protein concentration/separation
| Plasma treatment
|
Casein/whey separation
| Enzyme preparation, protein concentration
|
Whey protein concentration/separation
| Clarification and concentration of biological fermentation broth
|
Endotoxin and pyrogen removal
| Preparation of medical sterile water and water for injection
|
Traditional Chinese medicine extract separation and refining
| Concentration of gelatin, carrageenan, chondroitin sulfate
|
Purification and sterilization of pure water and drinking water
| Pretreatment for nanofiltration and reverse osmosis
|
Advantages of ultrafiltration membrane system:
1. The membrane element has high separation accuracy and a wide range of pore size distribution, which can be reasonably selected according to process requirements;
2. The system capacity can be customized according to user needs;
3. The system adopts cross-flow filtration technology, which can reduce the number of cleaning times and reduce downtime, thereby maintaining a higher flow rate;
4. The membrane element can be repeatedly cleaned and recycled, with a service life of up to 2-3 years, reducing operating costs;
5. The system has a high degree of automation, and the control system can be configured with manual, semi-automatic or PLC fully automatic control according to user needs. It has low energy consumption and operating costs, is easy to control and maintain, improves production efficiency, and reduces labor intensity;
6. The entire system is made of sanitary stainless steel materials, integrated structural design, skid-mounted structure, and no sanitary dead corners on the equipment surface, which meets GMP requirements.
Common membrane element models:
|
Membrane Type
| Size Molecular weight
| Membrane material
|
Ultrafiltration membrane
| 1812
2540
4040
8040
| 300,000
| PES
|
100,000
| PES
|
50,000
| PES
|
30,000
| PES
|
20,000
| PES
|
10,000
| PES
|
5,000
| PES
|
3,000
| PLS
|
1,000
| PES
|
Technical Parameters
Model
| Capacity
| Powder
| Pressure
| Temprature
|
RSF-UF4040-1X
| 50-100Kg/h
| 2.2KW
| 0.7MPa
| 5-45℃/75℃
|
RSF-UF4040-2X
| 100-150Kg/h
| 2.2KW
| ≤0.7MPa
| 5-45℃/75℃
|
RSF-UF4040-4X
| 150-250Kg/h
| 4KW
| ≤0.7MPa
| 5-45℃/75℃
|
RSF-UF4040-6X
| 250-300Kg/h
| 5.5KW
| ≤0.7MPa
| 5-45℃/75℃
|
RSF-UF8040-1X
| 150-300Kg/h
| 4KW
| ≤0.7MPa
| 5-45℃/75℃
|
RSF-UF8040-2X
| 300-600Kg/h
| 4KW
| ≤0.7MPa
| 5-45℃/75℃
|
RSF-UF8040-4X
| 600-1000Kg/h
| 7.5KW
| ≤0.7MPa
| 5-45℃/75℃
|
RSF-UF8040-6X
| 1000-1500Kg/h
| 7.5KW
| 0.7MPa
| 5-45C/75℃
|
RSF-UF8040-8X
| 1500-2000Kg/h
| 7.5KW
| ≤0.7MPa
| 5-45℃/75℃
|
RSF-UF8040-9X
| 1800-2500Kg/h
| 11KW
| ≤0.7MPa
| 5-45℃/75℃
|
RSF-UF8040-12X
| 2500-3500Kg/h
| 11KW
| ≤0.7MPa
| 5-45℃/75℃
|
RSF-UF8040-15X
| 3500-4500Kg/h
| 15KW
| ≤0.7MPa
| 5-45℃/75℃
|
RSF-UF8040-16X
| 4000-5000Kg/h
| 22KW
| ≤0.7MPa
| 5-45℃/75℃
|
RSF-UF8040-18X
| 4500-5500Kg/h
| 22KW
| ≤0.7MPa
| 5-45C/75℃
|
RSF-UF8040-20X
| 5000-6000Kg/h
| 22KW
| ≤0.7MPa
| 5-45℃/75℃
|
RSF-UF8040-24X
| 6000-8000Kg/h
| 30KW
| 0.7MPa
| 5-45℃/75℃
|
>>
