Product Details
Product Description
Product Description

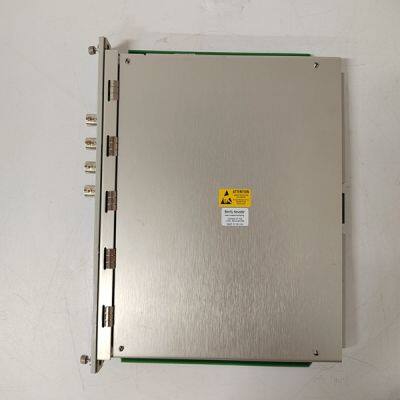

Brand:BENTLY
Type:3500/45
Origin: the United States
Warranty: 365 days
Colour: new/used
Shipping method: Courier delivery
Spare parts spare parts, the main DCS control system of PLC system and the robot system spare parts,
Brand advantage: Allen Bradley, BentlyNevada, ABB, Emerson Ovation, Honeywell DCS, Rockwell ICS Triplex, FOXBORO, Schneider PLC, GE Fanuc, Motorola, HIMA, TRICONEX, Prosoft etc. Various kinds of imported industrial parts
Provides one S100 I/O port, (a 36 pin centerline miniature ribbon connector located on the TP856 Baseplate). • Simple DIN-rail mounting • The CI856 handles I/O scanning and updating of S100 I/O units located in up to five I/O racks. The minimum cyclic scan/update interval is 0.2ms, though this will depend on I/O type and number of I/O points. • Pre-set, two-letter Alpha code locking device installed in unit base prevents mounting of incompatible components. • Supports Hot swap. Description The CI856/TP856 connects S100 I/O to AC 800M.The TP856 Baseplate has one 36-pin centerline miniature ribbon connector for connecting S100 I/O racks. The baseplate has a code lock, see Table 4 on page 75, that prevents installation of an incorrect type of unit onto the TP856 Baseplate. The CI856 expansion unit contains the CEX-Bus logic, S100 I/O-bus logics, CPU and a DC/DC converter that supplies appropriate voltages from the +24 V supply, via the CEX-Bus.
Unit error detected. Controlled by CI856 Software. Set by the Hardware during controller Reset. Cleared by the CI856 Software after successful startup. R(un) /Green Operating. Controlled by the Control Software. Cleared by the Hardware during controller Reset. TO /Yellow Flashes at S100 I/O access time-outs. Table 87. CI856 S100 I/O Interface Specifications Item Value Type S100 I/O Communication Interface Galvanic isolation No Status indicators Run normally green, FAIL exceptionally red, the indicator TO are yellow flashing at S100 I/O access time-outs. Connector 36 pin centerline miniature ribbon connector, female Current consumption (from CEX-Bus 24 V DC) 120 mA typical (200 mA max.) Power dissipation 2.9 W typical Capacity Max 5 I/O racks with 20 I/O units each Protection Rating IP20 according to EN60529, IEC 529
>>
