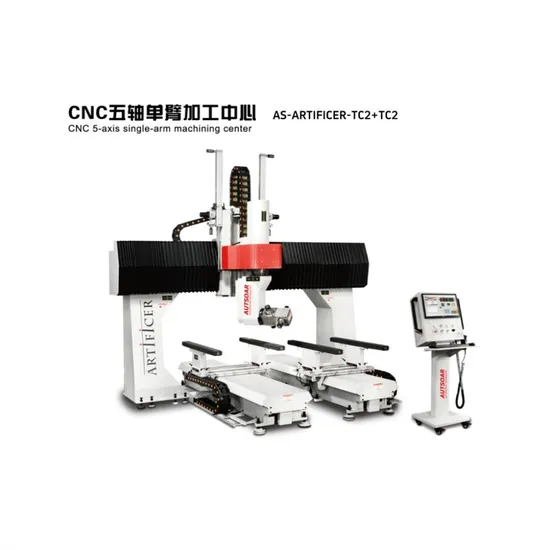

Hot Selling Heavy-Duty Wood Cutting Five Axis Single Arm Machining Center CNC Router CNC Machine Woodworking Machinery

US$60,000.00-200,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
AS-ARTIFICER-TC2+TC2
Condition
New
Certification
ISO, CE
CNC or Not
CNC
Voltage
380V
Installation of Power
34.5kw
Maximum Moving Speed
50m/Min
Working Table Size
1130*900mm*2
Machine Weight
About 6000kg
Transport Package
Standard Export Wooden Crate
Specification
standard
Origin
China
Production Capacity
200 Sets Per Month

Product Description

Product Parameters
Processing scope
1. Vacuum worktable size: 1130 * 900mm * 2
2. Number of vacuum workbenches: 2Pcs
3. Sports itinerary:
-X-axis travel: 2650mm
-Distance between the two pillars of the machine: 2540mm
-Y-axis travel: 2200mm
-Z-axis travel: 850mm
Working parameters
1. Maximum moving speed:
-X-axis speed: 70m/min
-Y-axis speed: 70m/min
-Z-axis speed: 50m/min
-C-axis (rotating head):+/-400 °
-A-axis (rotating head): continuous rotation
2. Install power input: 34.5 kW
3. General operating voltage: 380Vx3P
4. Power supply: AC380V/50Hz
5. Compressed air pressure: 6bar
6. Machine dimensions (excluding electrical box operation box): length x width x height: 3650x3350x3600mm
7. Total mechanical weight: approximately 6000kg

Applications: Wooden furniture industry, furniture decoration, musical instruments, wooden crafts, large panel carving, solid wood furniture, solid wood murals, composite doors, paint free doors, cabinet doors, advertising industry, mold industry, relief, toy production, bedside tables, screen sculptures, etc.
Product Description
Sample
Packaging & Shipping
Certifications
FAQ
1. Question: How to transport the machine?
Answer: We can send our machines by sea, land, and railway
2- Question: Is the quality guaranteed?
Answer: Each device is inspected to ensure quality before being shipped out, and after-sales service is provided in a timely manner
3-Can it be customized?
Answer: If you have special requirements, we can certainly customize the machine according to your requirements to meet your needs.
