High Purity Iron Bar / Iron Billet -75X75X3000mm

Product Description

High Purity Iron Billet
Chemical Composition %
Specifications A

Chemical	Fe	C	Si	Mn	P	S	Al
Spec (%)	99.50 min	0.015 max	0.025 max	0.10 max	0.01 max	0.003 max	0.05 max
Chemical	Cu	Co	Ni	Cr	Mo	Sn	N
Spec (%)	0.03 max	0.01 max	0.05 max	0.05 max	0.02 max	50ppm max	50ppm max

Specifications B

Chemical	C	Sn	P	Si	Al	Mn	S
Spec (%)	0.005max	0.001max	0.006max	0.01max	0.005max	0.05max	0.003max
Chemical	Cr	Ni	Mo	O2	As	Co	Cu
Spec (%)	0.01max	0.01max	0.008max	0.005max	0.001max	0.01max	0.01max
Chemical	N	V	B	Zr	Nb	Ti	Pb
Spec (%)	0.005max	0.01max	0.001max	0.01max	0.005max	0.005max	0.001max

Specifications C

Chemical	C	Si	Mn	P	S	Cr	Ni
Spec (%)	0.005max	0.01max	0.07max	0.004max	0.002max	0.02max	0.03max
Chemical	V	W	Co	Cu	Sn	Al	Ti
Spec (%)	0.01max	0.005max	0.003max	0.02max	0.003max	0.005max	0.01max
Chemical	B	Nb	N	O	H	As	Sb
Spec (%)	0.0005max	0.002max	0.008max	0.02max	0.001max	0.005max	0.0003max

Specifications D

Chemical	C	Si	Mn	P	S	Al	Cu
Spec (%)	0.006 max	0.03 max	0.12 typical	0.012 max	0.01 max	0.05 max	0.03 max

Size:
A - 75mm x 75mm x 300mm (with a tolerance of +/-5, +/-5, +/-15mm)
B - 55mm x 107mm x 444.45mm (with a tolerance of +/-5, +/-10, +/-19mm)
C - 230mm x 230mm x 2209mm (with a tolerance of +/-10mm, +/-10mm, +/-20mm)
D - 30Φ x 50-100mm (Tolerance +/-7%)
Remark: Both specification & size can be customized as customer's request.
Processing Technology
square iron cutting by sawing machine
Packing:

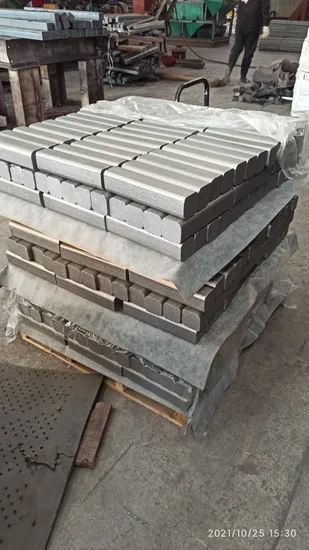

A. Strapped & Wrapped On Pallet

B. In 1000kg Bulk Bag

C. In Bundle On Wooden Dunnage
