2025 Bcmc 4 Axis Interpolated Bridge Saw Machine for Granite Marble Sink Top Countertop Stone Processing in USA Canada

Product Description

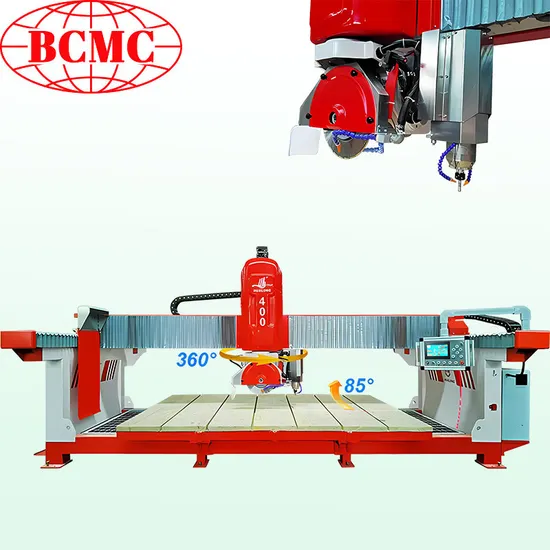

BCMC Machinery BCSQ-350C and BCSQ-350F are kind of 4 axes integrated construction bridge saw. Suitable for granite, marble, sintered stone, tile, porcelain and other kind of stone processing. Monoblock shape and beauty. Updated from BCSQ-350 3 axes interpolated into 4 axes interpolated. For simple shape cutting ever preset in the machine with one click control.
Function Compares:
BCSQ-350C Linear Type: automatic cutting specification board + four-sided chamfering + plane slotting (drawing) + drawing grid + stove top + (polygon) basin hole + polygon + trapezoid + rhombus + line profiling (optional)······
BCSQ-350F Arc Type: Automatic cutting specification board + four-sided chamfering + pull grid + stove + (polygon) basin hole + polygon + trapezoid + rhombus + sector + outer circle edge + oval edge + horse belly edge + line profiling (optional)······
Main Features: Small space occupied. The covering area is only 15 square meters (5mx3m LxW) . Save your space and get more free space. The main core control components adopt international first-line brand components, with stable performance and long life. 4 interpolated axis which can move in X, Y, Z, C axes together with the cutter head turning and rotating in one time. Z-axis movement by lead screw. Advanced PLC touch screen control system. Easy control and interactivity. Man-machine interactive interface, module parameterized input, no programming required, intuitive operation and handy. Pre-set parametic figures such as hexagon, octagon, kitchen top, trapezium, polygon, etc. Laser checking and calibration instrument to aid in lining up the cut at the beginning of processing. Available for manual control for precise machining work. Cutter head can rotate in 90 degrees and tilt in 45 degrees automatically for chamfer work. The workbench can tilt in 85 degree and rotate all around.
Detailed Information For Spare Parts:
Control system
Advanced PLC control system with touch screen for computer setting and controlling easily and visible. Make your complicated work easily and high efficiency. No need to switch from PC to machine frequently.
Electric Cabinet
Quality electrics used to ensure stable performance.
Laser Reticule Apparatus
Laser checking and calibration instrument to aid in lining up the cut at the beginning of processing.
Linear Guide
Quality linear guide used on crossbeam and carling for high precision of cutting and long lifespan.
Auto Lubricating System
Automatic oil feeding and lubrication system makes the regular maintenance easy and reduce the waste of oil.
Metal Tank (optional)
Optional choose for collecting water for recycling. Save your cost and being more environmental.
Remote controller(optional)
Easy controlling the movement in distance conveniently.
Hydraulic Giant (optional)
For cleaning the machine and keep it tidy.
Application:
* Decorative wall panels
* Countertops
* Doorsteps, staircases and thresholds
* Fireplaces
* Flooring
* Funerary art/tombstone
* Street furniture
* Ventilated facades

---
