Basic Info.
Structure
Vertical Drilling Machine
Automatic Grade
Automatic
Certification
CE, ISO 9001
Processing Size
2000X2000mm
Processing Thickness
15-100mm
Feeding Stroke
260mm Servo Feeding
Power of Spindle Motor
7.5kw
Control Mode
Knd CNC System or Siemens System
Dimension
4200X2850X2750mm
Transport Package
Plastic Film as Standard Package
Product Description

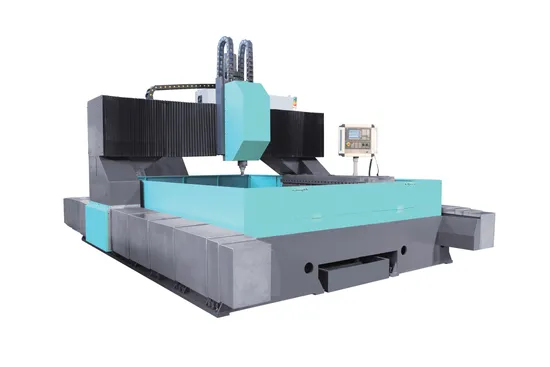

ubeCNC Plate Drilling and Milling Machine for Steel plate and tubesheet PHD Series
heet PHD Series
The machine is mainly used for drilling and milling of steel structure, iron tower, bridge, mechanical processing and other industries, such as connecting plate and floor board, drilling and milling of tubes, baffles and flanges in industries such as boiler, petrochemical, pressure vessel and so on; drilling holes, blind holes, step holes, chamfering and light milling.
This machine is mainly composed of bed,gantry,drilling and milling power head,electric control system,centralized lubrication system,cooling system and chips removal system etc.
1.The bed is made of high quality gray cast iron, no need foundation.
2.Double side lead screw synchronous driving system, stable performance, flexible movement, accurate positioning.
3.Adopting slide head drilling and milling power head, it can realize the automatic conversion of fast forward, drillng and quickly, and has the function of automatic chip breaking.
4.Adopt BT50 high speed internal cooling precision spindle, can adopt hard alloy internal cold drill bit, processing efficiency is high.
5.Equipped with pneumatic knife cylinder automatic knife replacement, optional tool magazine.
6. KND CNC system+ servo motor control, can directly transfer Auto CAD drawings to general processing program.
7.Automatic chip removal, cooling liquid recycling.
Technical parameters:
| Model | PHD1616 | PHD2016 | PHD2020 |
| Processing size | LxW(mm) | 1600x1600 | 2000x1600 | 2000x2000 |
| Thickness(mm) | 15-100 |
| Drilling spindle | Quan. of spindle | 1 |
| Model of spindle | BT50 |
| Speed of spindle(r/min) | 30-4500 |
| Feeding stroke(mm) | 260(Servo feeding) |
| Tapping diameter(mm) | M20 |
| Clamping mode | Manual |
| Power of motor | Spindle motor(KW) | 7.5 /11(Servo motor) |
| X-axis(KW) | 2×2.3 |
| Y- axis(KW) | 2.3 |
| Z- axis(KW) | 2.3 (with brake) |
| Precision of positioning(mm) | 0.1 |
| Precision of repeating positioning(mm) | 0.08 |
| Control mode | KND CNC system, model: KND1000 |
| Weight of machine(T) | 5.5 | 6.6 | 7.2 |
| Dimension(m) | 3800x2050x2750 | 4200x2450x2750 | 4200x2850x2750 |
| Optional- Tool magazine | 6units of Straight tools |
| Optional- automatic clamp | 12 units of hydraulic clamper |
