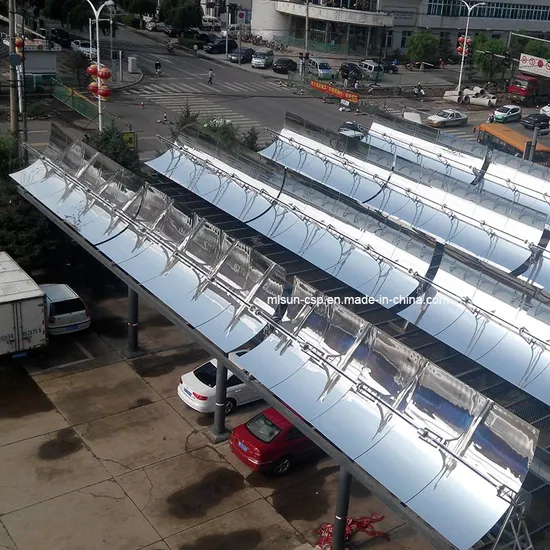

Rooftop Solar Parabolic Trough 2.55m by 6m Heat Solutions for Industrial Processes

Product Description

We manufacture Parabolic Troughs for Concentrated Solar Power plants.There are 2 regular models:
Parabolic Trough 2.55m*6m, Parabolic Trough 5.77m*12m.
Parabolic Trough 2.55m*6m is used for seawater desalination, hot water, hot air, drying, room heating, especially generating steam.
Parabolic Trough 5.77m*12m is used for solar thermal power plants by generating high temperature and high pressure steam to drive the steam turbine, in order to generate electricity.

No.	Parabolic Trough Concentrator	PTC 2.55m*6m	PTC 5.77m*12m
1	Trough width	2.55 m	5.77 m
2	Trough length	6 m	12 m
3	Aperture area	15.3 sqm	69.24 sqm
4	Tracking accuracy	0.1°	0.1°
5	Receiver tube (glass-to-metal)	3 pieces	3 pieces
6	Receiver tube material	SUS304 stainless steel	SS321/316L stainless steel
7	Working temperature	300ºC	400ºC
8	Working pressure	40 bar	40 bar
9	Driving system	1 set	1 set
10	Sun-tracking and control system	1 set	1 set

---
