| Maximum plane sheet width | ≤100mm | |
| Minimum plate width | ≥180mm | Workpieces smaller than 180 mm require a mould to be made |
| Thickness range | 0.2-80mm | |
| Supply voltage | 380v/220v | 380v industrial grade recommended |
| Grinding and polishing motors | 2.2kw | |
| Conveyor belt motors | 120w | |

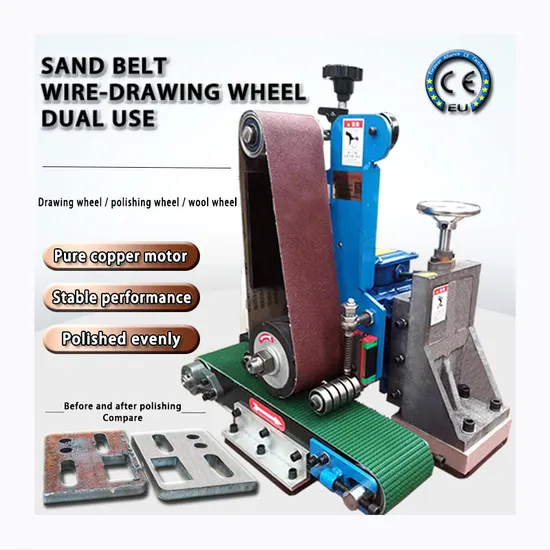

| Grinding wheel size | 915*100mm | Available in coarse or fine |
| Machine weight | 100kg | |
| Dimensions | 530*520*600mm | |
| Main wheel size | Inner diameter: 25mm Outer diameter: 120mm Width: 100mm | Other wheels can be replaced, e.g. drawing wheels, cloth wheels, etc. |
| Packaging | Packing in wooden boxes |
