2 Ton/Day Biodiesel Tys Used Cooking Oil Decoloring and Purification Plant

Product Description

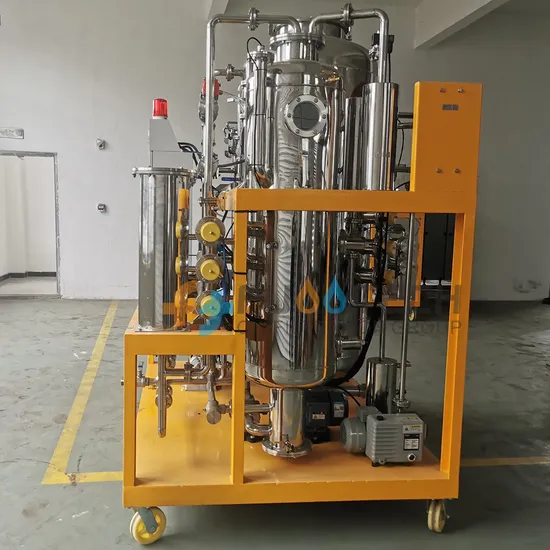

TYS Series Multi-function Oil Filtration and Decoloring System
Product Description
FUOOTECH TYS series Food Grade Oil Filtration and Decoloration Machine is specially designed to clean the new and used cooking oil, coconut oil, palm oil, dirty vegetable oil, trench oil, swill oil and animal oil, edible rapeseed oil, tea oil, peanut oil, grease etc., It can effectively remove water, particles, alcohol etc.
Further more, it can also recover the oil color from black to original yellow. This is combined with our special brand food grade decoloring sands, which is pure natural and has high efficiency. The treated oil is clean, limpidity, and good quality.
TYS is a good filtration machine for biodiesel production factory, soap factory, fry food factory, oil restaurant, cooking oil factory, vegetable oil factory, and waste oil collecting store etc.
This equipment is widely used to process palm oil made from palm fruit whose color and impurity and moisture cannot meet the use requirements. After processing by TYS oil purification and decoloring equipment, the moisture, gas, impurities and harmful pigments in the oil can be quickly and effectively removed so as to restore the performance indicators of oil quality. The treated oil has a transparent color, low emulsification value, very little water content, and high impurity accuracy.
Therefore, this system is widely used in processing and purification in catering industry, food industry, oil chemical industry and other industries.

Technical Parameters

Parameters		Unit	TYS-1	TYS-2	TYS-3	TYS-5	TYS-10	TYS-15	TYS-20	TYS-30	TYS-50
Treatment Capacity		Ton/day (8 hr)	1	2	3	5	10	15	20	30	50
Power Supply			380V, 50HZ, 3Phase (or as per actual request)
Working Noise		dB(A)	≤65
Working Vacuum		MPa	-0.06~-0.095
Working Pressure		MPa	≤0.5
Working Temperature		ºC	30~90
Applicable Industries		Catering industry, food industry, oil chemical industry, biodiesel production factory, soap factory, fry food factory, oil restaurant, cooking oil factory, vegetable oil factory etc.
Applicable Oils		new and used cooking oil, coconut oil, palm oil, dirty vegetable oil, trench oil, swill oil and animal oil, edible rapeseed oil, tea oil, peanut oil, grease etc., It can effectively remove water, particles, alcohol etc.
Inlet (outlet) caliber		mm	Ф25	Ф25	Ф25	Ф32	Ф42	Ф42	Ф50	Ф50	Ф60
Weight		kg	1500	2000	2500	3000	3500	4000	4500	5000	5500
Size	Length	mm	1800	1850	1900	1950	2000	2200	2300	2400	2500
	Width	mm	1300	1350	1400	1450	1500	1600	1600	1700	1800
	Height	mm	2300	2300	2300	2400	2500	2700	2700	2700	2700
After treated	Color	L	≤ 1-3
	Impurity	μm	≤1 (Customizable)
	Water	ppm	≤100
	Demulsification	min	≤15(GB/F 7305)
	Cleanliness	grade	≤6(NAS1638)

Note: 1. The dimension and weight will be changed with changing of technical specs.
2. All the specs can be customized according to client's requirements. Product Details Display
Our products help you: * Save oil change cost
* Solve oil disposal problem
* Extends oil service life
* Keep equipment working more efficiently
* Protect machinery and reduce maintenance time
* Create a cleaner environment
* Win profits from our oil purifier machines when you resell or rent to others Oil Before and After Treatment

Main Features & Functions
1. It integrates precision filtration of oil, efficient dehydration, degassing, performance
improvement, oil color change, vacuum three-dimensional short-range thin film evaporation
technology and electrical control system.
2.Simple to operate, safe and reliable in operation. It can effectively ensure the normal
operation of oil-using equipment and avoid accidents.
3.Advanced decolorization processes technology specially for palm oil.
Firstly, it ensures that the equipment can operate normally again after the oil is cooled and
solidified.
Secondly, the equipment uses decolorization products with natural decolorization activity
and purification adsorption. The raw ore is a special natural growth. Made of mineral
interwoven materials, these unique properties give the processed products a natural
decolorizing effect. Not only the quality is good, but also the decolorization efficiency is high.
It does not chemically react with grease or general liquids, nor does it change the quality of
the oil. It can continuously process a large amount of grease. It is an ideal high-efficiency
micro filter.
4.Sophisticated particles removal and filtration system.
High-quality filter elements imported from abroad that are resistant to corrosion, high
temperature resistance, large dirt holding capacity, and high filtration precision are used to
precisely filter the oil to be processed. At the same time, a step-by-step encryption filtration
system is used to quickly filter out impurities contained in the oil. and suspended matter, etc.
5. Safe and reliable external oil heating system, optimized pipeline design, the oil flows and
heats outside the pipeline during heating, ensuring that there is no "dead oil zone" when the
oil is heated, and preventing palm oil from remaining on the inner wall of the pipeline after
cooling Inability to circulate leads to excessive local heating and replacement. All tank
pipelines and decolorization devices can also be preheated to ensure that the equipment can
operate normally again after cooling. At the same time, the heating system is equipped with
a constant temperature controller and an oil inlet and outlet interlock protection device to
fully realize the automatic operation and shutdown of the heater. When the temperature of
the oil flowing through the pipe heater is lower than the set value on the thermostatic
controller, the heater automatically starts to heat; otherwise, the heater stops heating.
6. The industry-leading intelligent liquid level automatic control system can comprehensively
monitor the liquid level in the vacuum separator, automatically adjust the balance of oil inlet
and oil outlet, and truly achieve human-machine separation, making operation more
convenient and reliable. Prevent equipment from running out of oil.
7. Adopts special precision oil pump, which runs smoothly in vacuum state, has strong suction
energy and low noise, and meets environmental protection requirements.
8. Advanced electrical interlocking safety protection control system. Through the action
control of each electrical component, the temperature, pressure, vacuum, liquid level,
power outage, over-voltage, under-voltage, overload, etc. of the equipment are
comprehensively monitored and protected to ensure the normal operation of the
equipment.
9. Equipped with an automatic audible and visual pressure difference alarm device. When
the filter element is clogged and the pressure reaches a certain value, an audible and visual
alarm signal will be automatically sent out to protect the normal operation of the equipment.
10. Reasonable in structure, easy to install, use and maintain.
