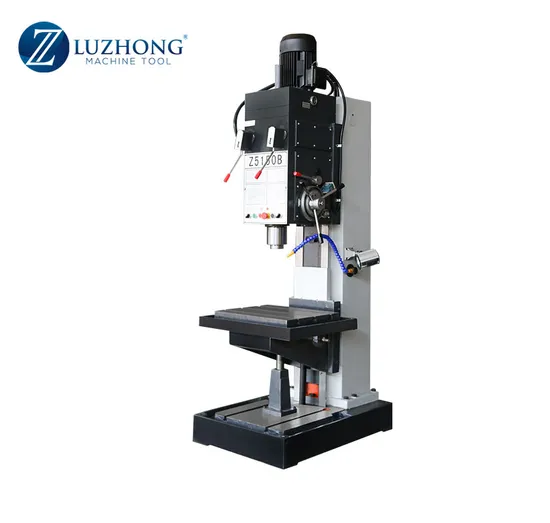

Square column vertical metal high precision Z5150B drilling machine

Product Description

Square column vertical metal high precision Z5150B drilling machine
Product Description
Product Parameters

SPECIFICATIONS	Units	Z5150B
Max. drilling dia.	mm	50
Max.feed resistance	N	16000
Max. allowble torque	N.m	350
Spindle taper	-	MT5
Spindle travel	mm	250
Distance between spindle nose and table surface	mm	750
Distance from spindle axis to column surface	mm	350
Spindle box travel	mm	200
Spindle speed range	rpm	31.5-1400
Spindle speeds steps	-	12
Spindle feed range	mm/r	0.056-1.8
Spindle feed steps	-	9
Table size	mm	560*480
Table travel	mm	300
Main motor power	kw	3
Coolant motor power	kw	0.09
Machine weight	kg	1350
Overall dimension	mm	1090*900*2530

Detailed Photos

Company Profile

FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .

2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .

3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.

4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.

5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .

5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )

---
