US$3,500.00-9,000.00
|
1 Set
(MOQ)
|
Basic Info.
Model NO.

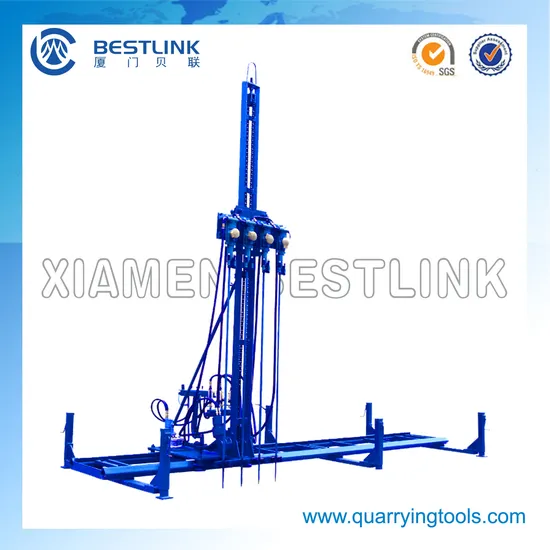

BL28-4AH Pneumatic Mobile Rock Drill
Controlling Mode
Artificial
Automatic Grade
Semiautomatic
Manufacturer
Manufacturer for Vertical Rock Driller and Stand
Size
4m Length and 5m Height
Usage
Drill Hole for Passage of Diamond Wire,Drill Holes
Special Design
Special Design Are Available Based on Needs
Color
Normall Blue, Also Can Be Special Made.
Material
Hard Steel for The Control Stand,and Good Driller
Compressor Air Required
0.4-0.7mpa
Key Word
Mobile Rock Driller,Mobile Drilling Machine
Transport Package
Plywood Packing
Specification
CE, ISO2000, SGS
Production Capacity
100sets
Product Description
Pneumatic mobile gang drill /Mobile line drilling machine is ideal for quarrying, rock explosion, especially making large diameter holes. (90mm/3.5 inch). It is mainly used for making holes for the passage of diamond wire. And also good for normal line hole drilling, such as holes for expansive mortar.
Practicality in use, derived from its simple construction, and the lightness of the structure are its main characteristics. Two control ways to choose, one is feeding by pneumatic motor, cross moving by handwheel.
The other one is both feeding and cross moving by pneumatic motor.
The drill is equipped with a pneumatic rotation head which combined with the hole hammer permits drilling linearity to be maintained, reaching considerable depths at high penetration speeds.
The support column has a special fixing system with a spherical joint and an anchoring down jack which permits drilling in all directions.
Other construction characteristics permit the drill height from the ground to be kept to a minimum, in the case of horizontal drill.
| Model no. | Drilling direction | Feeding system & cross moving device | Jackhammer | Positional device |
| BL28-AHM | horizontal drilling | feeding by pneumatic motor | 1*YT28 | anchor-wedge |
| BL28-AV | vertical drilling | feeding by pneumatic motor,cross moving by handwheel | 1*YT28 | anchor-wedge and adjustable screw rod |
| BL24-2AM | vertical drilling | feeding by pneumatic motor,cross moving by handwheel | 2*YT24 | anchor-wedge and adjustable screw rod |
| BL28-2AM | vertical drilling | feeding by pneumatic motor,cross moving by handwheel | 2*YT28 | anchor-wedge and adjustable screw rod |
| BL24-2AM | vertical drilling | feeding and cross moving by pneumatic motor | 2*YT24 | anchor-wedge and adjustable screw rod |
| BL28-2AM | vertical drilling | feeding and cross moving by pneumatic motor | 2*YT28 | anchor-wedge and adjustable screw rod |
| BL24-4AH | vertical drilling | feeding and cross moving by pneumatic motor | 4*YT24 | anchor-wedge and fast positional leg |
| BL28-4AH | vertical drilling | feeding and cross moving by pneumatic motor | 4*YT28 | anchor-wedge and fast positional leg |
>>
