| Grinding Machine |

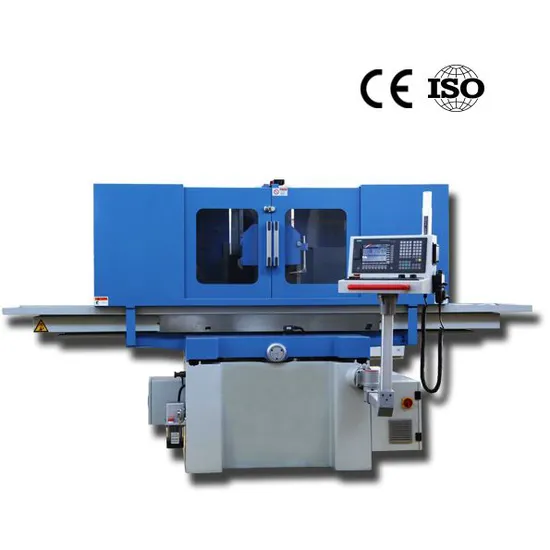

| CNC Surface Grinding Machine |
| Feature |
| 2-axis (YZ) or 3-axis (XYZ) CNC controllers can be chosen for saddle moving grinder. SYNTEC, SIEMENS, FANUC controllers are recommended. Elaborately-designed closed safe guard with safety-switch, not only have good appearance but also safety operating field. Precision grind spindle with preload high precision angular ball bearing and driven by V3 motor, runs in maintenane-free, low vibration, and no noise. CNC-2 model: YZ axis numerical control and linked, driven by AC servo motor and ball screw. X axis driven by hydraulic. CNC-3 model: XYZ axis numerical control and linked, driven by AC servo motor and ball screw. |
| Specifications | Unit | FSG-2550CNC | FSG-30100CNC | FSG-40100CNC |
| Table size | mm | 254x508 | 305x1020 | 406x1020 |
| Magnetic chuck size | mm | 250x500 | 300x1000 | 400x1000 |
| Max. distance from spindle center to table | mm | 450 | 580 | 580 |
| Max. loading capacity (including chuck) | kg | 200 | 400 | 600 |
| X axis feed | ||||
| Feed speed | m/min | 5-18/CNC-3 (5-25/CNC-2) | ||
| Micro feed rate | mm | 0.005/CNC-3 (--/CNC-2) | ||
| Y axis feed | ||||
| Feed speed | m/min | 0-1 | 0-1 | 0-1 |
| Micro feed rate | mm | 0.005/CNC-3 | 0.005/CNC-3 | 0.005/CNC-3 |
| Z axis feed | ||||
| Feed speed | m/min | 0-1 | 0-1 | 0-1 |
| Micro feed rate | mm | 0.005 | 0.005 | 0.005 |
| Spindle rotating speed | r/min | 2850(50Hz)/3450(60Hz) | 1450(50Hz)/1750(60Hz) | 1450(50Hz)/1750(60Hz) |
| Grinding wheel size | mm | 200x20x31.75 | 350x40x127 | 350x40x127 |
| Spindle motor power | kw | 2.2 | 4 | 4 |
| Floor space (LxWxH) | mm | 2800x2000 | 5000x2400 | 5000x2400 |
| Gross weight | kg | 1900 | 3500 | 4400 |
| Package size (LxWxH) | mm | 2200x2000x2150 | 3750x2250x2250 | 3750x2250x2250 |
