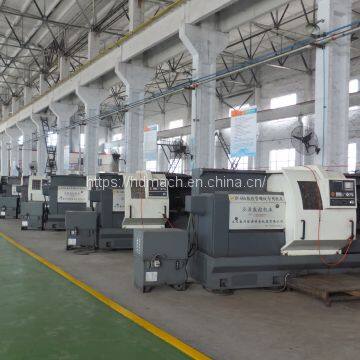

CNC couplig threading lathe

Product Details

Product Details

Product Description

Product Description
This series machine is flat bed machine, the guide surface is assembled by flat guide rail and triangle guide rail, then the contact surface is widened and thickened. Machine bed is made by high strength cast iron, it is through precision grinding after supersonic frequency quenching. It is the ideal equipment for normal thread machining of pipe coupling.
Items
Unit
HYSK-6150
HYSK-630A
HYSK-338A
Max. swing diameter over bed
㎜
φ500
φ630
φ880
Chuck diameter
㎜
φ400
φ458
φ508
Max. machining length
㎜
500
650
800
Max. swing diameter over saddle
㎜
φ260
φ400
φ480
Spindle bore diameter
㎜
φ70
φ100
φ190
Range of spindle speed
r/min
25~1200
25~750
25~450
Range of machining diameter
in
2 3/8~ 5 1/2
2 3/8 ~ 9 5/8
7~20
Main motor power
kW
7.5
11
22
X-axis travel
㎜
260
350
450
Z-axix travel
㎜
600
750
900
Rapid movement speed(X/Z)
m/min
8/10
8/10
8/10
Tool rest station
NO.
4+1
4+1
4+1
Spindle center hight
mm
1135
1150
1150
Roughness
mm
Ra1.6
Ra1.6
Ra1.6
Machine weight(NW)
kg
2600
5200
8800
Machine dimension(L×W×H)
mm
2920*1550*1620
4160*2000*1700
4500*2200*2000
