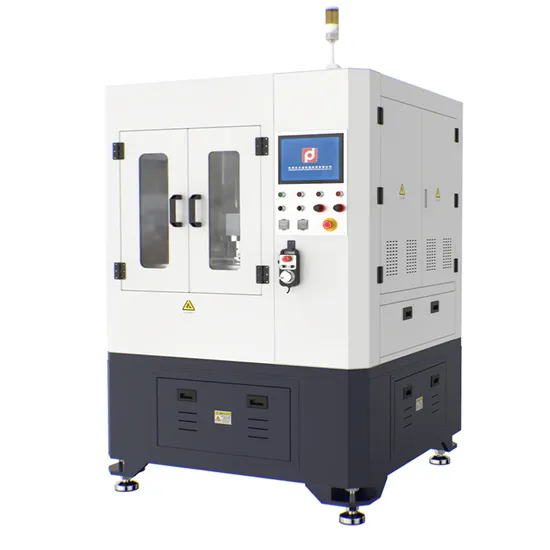

Fully Automatic Single Sided Sapphire Wafer Thinning Grinding Machine

Product Description

Why Ponda?
Ponda has profound experience of lapping, polishing and thinning. We heretofore supplied more than 60, 000 lapping process solutions and appliances over the industries of machinery, electronic, aerospace, aviation, automotive, atomic energy, optics; the substances of metal, SiC wafer, ceramics, glass, industrial sapphire, plastics, and any other composites.
Products Show
The equipment is mainly used for rapid thinning of silicon wafer, ceramic, sapphire, germanium sheet, gallium arsenide and other crystal materials.
Structure
This machine is mainly composed of vacuum sucker, sucker spindle, sucker drive mechanism, grinding wheel, grinding wheel and servo drive motor, grinding wheel feed mechanism, system full closed-loop control system, etc.
1, the diameter of the grinding wheel is 312mm, the grinding wheel uses diamond grinding wheel, the selection of the particle size of the grinding wheel is customized according to the requirements of the customer.
2, the grinding wheel spindle adopts precision rotating spindle, the driving mode is frequency conversion speed regulation, and the speed can be changed according to different process requirements by the PLC control system supported by the drive mode.
3, the machine adopts high precision screw and guide rail components, driving mode is servo fully closed ring control system drive, according to different materials of the workpiece and process requirements by the PLC control mode and the corresponding change of screw speed, that is, the grinding wheel feed speed, control feed accuracy by high-resolution grating ruler detection.

Control mode
1, the machine adopts advanced international famous brand PLC and touch screen, high degree of automation, human-machine interface, simple operation at a glance.
2, the air pressure pressure detection sensor, when the air pressure is less than the minimum pressure required for normal processing set by the equipment, the equipment alarms to prevent the workpiece from sucking fast.
3, grinding wheel torque control, when the torque is higher than the equipment set by the normal processing of the torque generated by the equipment alarm, to prevent equipment abnormal or misoperation of the knife damage machine accessories.
4, grinding wheel current monitoring, when the cold grinding wheel is higher than the equipment set the maximum current generated by normal processing of the grinding wheel rebound, rebound distance can be adjusted to prevent the grinding wheel extrusion workpiece damage.
5, the automatic compensation of the grinding wheel loss, to prevent the consumption of the grinding wheel in the grinding product at the same time affecting the processing accuracy of the workpiece.
6, the equipment can be selected according to customer needs to install the grinding wheel online dressing function, thickness measurement function.
SPECIFICATION

Standard Specification
Model number	FD150A		FD200A	FD300A		FD320A
Effective vacuum size:	Ø 150 mm		Ø200mm	Ø300mm		Ø320mm
Suction cup speed (continuously adjustable) :	0-300rpm/min		0-300rpm/min	0-300rpm/min		0-300rpm/min
Suction cup motor power:	2.2KW 380V 3 phase		2.2KW 380V 3 phase	2.2KW 380V 3 phase		1.5KW 380V 3 phase
Grating control system:	Resolution 0.0005mm		Resolution 0.0005mm	Resolution 0.0005mm		Resolution 0.001mm
Grinding wheel speed (adjustable):	0-3000rpm/min		0-3000rpm/min	0-3000rpm/min		0-3000rpm/min
Grinding wheel motor power:	5.5 kw		5.5 kw	5.5 kw		5.5 kw
Flatness after product thinning:	≤2um		≤2um	≤2um		≤2um
Weight:	1200KG		1200KG	1200KG		1250KG
Dimensions:	1010*1210*2070mm		1010*1210*2070mm	1010*1210*2070mm		1010*1210*2070mm
Built-In Optional Kits
Grade		Standard			Advanced
Slurry Recycle System		-			Integrated with PLC
Dressing System		-			Integrated with PLC
Station Fixing		Mechanical Fixture			Pneumatic Vacuum Fixing
Spindle		Mechanical			Pneumatic
*NOTE: the optional kits based on the production requirements, making samples can confirm if they are necessary.

SAMPLE DEMONSTRATION (THINNING)
Patent
About the company
Delivery & Packing
Packing Details : Packing, 1 pcs/Wooden box.
Note:
Different material characteristics and sizes are different, and the accuracy range that can be achieved is also different.
For details, refer to the actual data of the test machine.
FAQs
Q1: Which machine is most applicable for my product?
A: It usually depends on 5 requirements and parameters of your product: flatness, roughness, thickness, dimension, productivity:
1. If better flatness and roughness were required, you might need both lapping and polishing machine.
2. If to thin the product in a big margin, such as 500μm, you might need a thinner machine for extra.
3. If the productivity were excessive, you might need larger machine or to expand production line.
Additionally, we can confirm the production line as we make samples for you.
Q2: Does Ponda charge for making samples?
A: No, it's free to make samples.
Q3: Is Ponda trader or manufacturer?
A: We are manufacturer, certified National High-Tech Enterprise.
Q4: How long does it take machine to deliver?
A: Approximately 15 days to deliver. If the machine are out of stock, we need 15 days more to manufacture.
Q5: Does Ponda provide oversea setup and after-sale service?
A: Yes, we provide oversea service and online tutorial.
Q6: How many type of machine does Ponda manufacture?
A: We have 21 major series of machines, 5 different types run in different principles, more than 15 types of plates, 100 types of slurries.

---
