Product Description
Product Description
Product Description

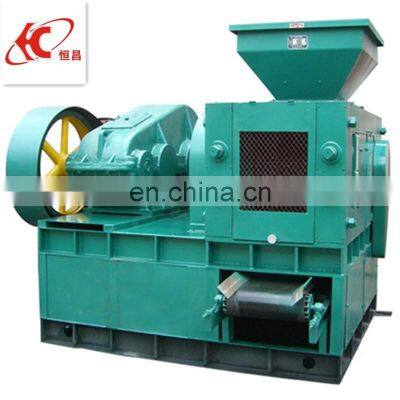

The briquette machine is mainly used for making pellets of non-ferrous and ferrous metal ore powder, coal powder, carbon powder, and directly into the furnace for smelting to increase the added value. All the scrap and auxiliary materials in the metallurgical industry need to be completed by the ball press. For example: dust removal ash, pool mud, scale, steel slag, iron fine powder, aluminum ash powder, silicomanganese ore powder, etc.
Details Images
Working principle
The roller of the briquette machine is cast with 65 manganese. After special heat treatment, the hardness can reach more than 58 degrees. Roller skins are assembled and assembled and can be replaced after wear. The mineral powder ball machine has a buffer device, which can better protect the equipment from the impact of hard objects.The main motor of the ball press machine: through the V-shaped belt, it is transmitted to the reducer: the reducer is transmitted to the driving shaft through the coupling, and then is driven by a pair of open gears to ensure the synchronization of the two roller shafts (opposite constant speed). The piston of the oil cylinder bears (constant pressure is held by oblique iron), and the system pressure is ensured by the hydraulic circuit, hydraulic control valve and accumulator. The material enters the hopper of the molding machine evenly through the quantitative equipment from the storage bin through the quantitative equipment. The adjustment gate adjusts so that the material evenly enters the middle of the counter-roller. The unit forming pressure of the counter-rotating counter-rotating roller at constant speed compresses the material from small to large. The molding pressure at the center line of the counter-roller reaches the maximum value. After the thread, the forming pressure quickly decreases and the sphere quickly falls.
Product Characteristics
The high-pressure briquette machine is mainly used for pressing powder materials that are difficult to form. The high-pressure briquette machine is characterized by large forming pressure, adjustable host rotation speed, and a screw feed device. The shape of the pellets produced by the high-pressure briquette machine determines whether the material is completely burned or the gas permeability during smelting. It occupies an important factor in the entire process. In the actual use of the high-pressure ball press, the more the shape of the pellets approximates an irregular shape, like lump coal, the better its combustion permeability and the more complete the combustion. If the shape of the pellet is a polygonal polygon, it is estimated according to the technical theory that it has many contact surfaces and warp angles, which is easy to form a framework. It is natural in combustion and smelting, but it is more difficult to process molds. Many companies are engaged in process processing. No, so the market is mostly circular. Main application range: The high-pressure briquette machine is mainly used to suppress lignite, coal powder, iron powder, coking coal, aluminum powder, iron filings, iron oxide scale, carbon powder, carbon powder, slag, gypsum, tailings, sludge, kaolin, activated carbon, coke powder, etc. Various powders, powders, wastes, and waste residues are widely used in refractory materials, power plants, metallurgy, chemical industry, energy, transportation, heating, and other industries. The materials produced by the ball press machine are energy-saving and environmentally friendly, easy to transport, and improve the The utilization rate of waste has good economic and social benefits.
Product Paramenters
Model
| Roller Size(mm)
|
| Total Pressure
(t)
| Main Power
(kw)
| Pre-press Power
(kw)
| Hydraulic Pump Power
(kw)
| Capacity
(t/h)
|
| Dia.
| Width
|
|
|
|
|
|
QYQ-476-1
| Φ476
| 196
| 95
| 45
| 15
| 1.5
| 1-2
|
QYQ-476-2
| Φ476
| 210
| 95
| 55
| 15
| 1.5
| 2-4
|
QYQ-520
| Φ520
| 196
| 95
| 55
| 15
| 1.5
| 3-5
|
QYQ-650
| Φ650
| 196
| 100
| 75
| 18.5
| 1.5
| 4-6
|
QYQ-672
| Φ672
| 275
| 100
| 75
| 22
| 2.2
| 6-10
|
QYQ-750
| Φ750
| 196
| 120
| 110
| 22
| 2.2
| 5-8
|
QYQ-850
| Φ850
| 196
| 120
| 132
| 22
| 2.2
| 6-10
|
