Basic Info.
Display
LCD Display with Backlight Optional
Keywords
Wind Speed Sensor
Power Supply
24V AC/DC±20%
Protection Grade
IP65, IP20(Probe)
Work Temperature
-10ºC - 60ºC
Customized Support
OEM, ODM, Obm

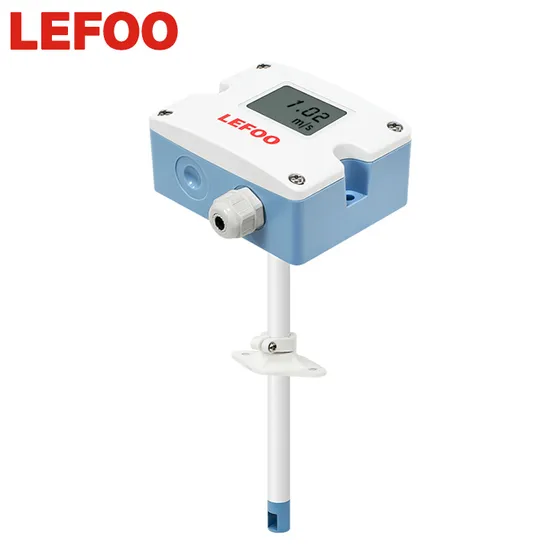

Product Name
Air Velocity Transmitter
Measuring Range
0-10m/S,0-15m/S,0-20m/S,0-30m/S
Output
RS485/Modbus, 0~10VDC/4~20mA
Transport Package
White Box Packing; Export Safe Packing
Production Capacity
50000 Piece/Pieces Per Month
Product Description
PRODUCT DESCRIPTION SPECIFICATIONS
| Product name | Air velocity transmitter |
| Warranty | 1 Year |
| Customized support | OEM, ODM |
| Place of Origin | China |
| Brand Name | LEFOO |
| Model Number | LFS101 |
| Measuring range | See product label |
| Accuracy | ±(0.2m/s+3%mv) |
| Output signal | 0-10VDC4-20mA(nonstandard 0-5V,Rs485) |
| Working environment | temperature-5~+7CTC Humidity:0-90%RH |
| The probe length | standard 220mm, it can customization under 1500mm or below non-standard gauge length 5000mm |
| Connector | 3X1.52mm connector |
| Screw compression Cable length | BVVR0.5mm2 allow 70m BVVRImm2 allow 200m BVVR1.5mm2 allow 300m |
APPLICATIONS RELATED PRODUCTS WHY CHOOSE US ABOUT LEFOO PACKING & DELIVERY FAQ Q:What kind of products do you offer ? A:Lefoo Industrial Co.,Ltd is focusing on RO booster pump, peristaltic pump and rotary vane pump, has became one of the leading micro pump brands in China and even in the world. Zhejiang Lefoo Sensing Technology Co., Ltd is specializing in pressure sensors, pressure transmitters, differential pressure transmitters, pressure switches, pressure controllers, temperature & pressure integrated transmitters and other pressure Sensing and control products, as well as temperature and humidity transmitters, CO2 transmitters, air speed transmitters, hydrogen sulphide transmitters, ammonia transmitters and other environmental gas products. Q: Are you manufacturer ? A: Yes, we are manufacturer with 3 factories. Q: Can I get samples? A:Yes, we have materials in stock to help you to get the samples as soon as we can. Q: Can you make customized products ? A: Yes, customized is accept, please contact us for specific requirements. Q: Can I to be your distributor ? A: Please contact us directly for details. Q: What's your warranty ? A:Normally one year warranty.
>>
