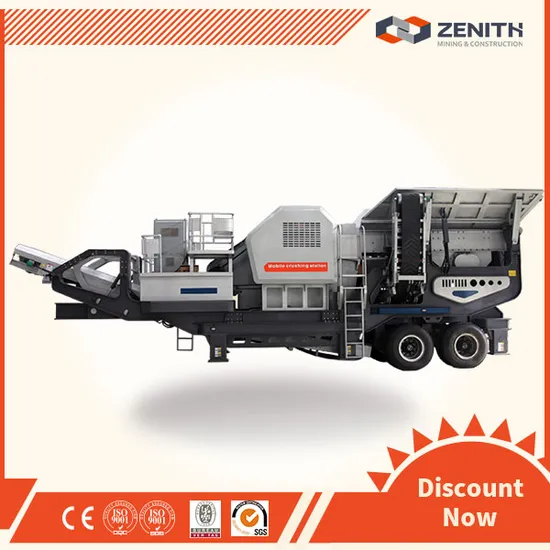

CE Approved Small Mobile Jaw Crusher Plant

Product Description

CE Approved Small Stone Crushing Machine, Small Mobile Stone Jaw Crusher Plant
1. Our Small Mobile Stone Jaw Crusher Plant is hot sale in China. it has been exported to many countries, such as Oman, Chile, Philippines, Indonesia, South Africa etc. it is widely praised by our customers because of its convenient and high crushing capacity.
2. Small Mobile Stone Jaw Crusher Plant is mainly used for coarse crushing and fine crushing. All the crushing and screening machines are erected on the truck , it can quickly move to job site, and easily set-up to handle different products. This Small Mobile Stone Jaw Crusher Plant provides a new field of business opportunities for, quarry operators, recycling, mining ore crushing and construction waste crushing. It offers high efficient and low cost project plan without environment limit for the clients.
Features of Small Mobile Stone Jaw Crusher Plant
The Small Mobile Stone Jaw Crusher Plant produced by our company has the following characteristics:
1. High-performance crusher;
2. Vehicle feeder, vibrating screen, belt conveyor;
3. Pulling the steering shaft to facilitate road transport;
4. Vehicle installation support, fast and convenient on-site installation;
5. Supporting the installation of the motor and control box integration;
6. Good mobility, compact, easy to use;
7. Stable performance, easy maintenance, flexible configuration;
8. Cost savings, low costs.
Working principle of Small Mobile Stone Jaw Crusher Plant
Materials are evenly transported into the crusher by feeder, then be crushed by impact crusher, to realize circle crushing through closed system constituted by circular vibrating screen. Finished material will be discharged and transported through conveyor for continuous crushing operations. The circular vibrating screen of impact mobile crusher can be removed according to the actual production needs, to achieve the initial crushing of materials. The wheel mobile primary impact crusher is convenient and flexible to be used together with other crushing equipment.
Small Mobile Stone Jaw Crusher Plant parameters:

Model	Car Body	Feeder			Crusher			Belt Conveyor (standard configuration? )	Engine (Optional)	Overall dimension (mm)
		Model	Feeding Size (mm)	Power (kw)	Model	Feeding Size (mm)	Power (kw)	Size(m)	Power(kw)
YF938J69-N	Two-Spindle	GZD960×3800	500	6-11	PE600×900	500	6-75	B800×8.5	200	12600×2550×3870
YF1142J710-N	Three-Spindle	GZD1100×4200	580	6-11	PE750×1060	630	8-90	B1000×9.5	250	13900×2750×4320
YF1349J912-N	Three-Spindle	GZD1100×4900	750	6-22	PE900×1200	750	8-130	B1200×10.5	270	15450×2950×4380
YF1349J811-N	Three-Spindle	GZD1300×4900	750	6-22	PEW860	720	6-132	B1200×10.5	320	15450×2950×4380
YF1349J1120-N	Three-Spindle	GZD1300×4900	750	6-22	PEW1100	930	8-185	B1200×10.5	400	15450×2950×4380

---
