| | parameters | Specifications |
| 1 | Effective width of core paper | 1300mm-2600mm |
| 2 | roll diameter) | φ1400mm |
| 3 | Core paper weight | 80g/M²-150g/M²(Medium to high strength corrugated paper) |
| 4 | Adhesive | Starch glue,PVA |
| 5 | Finished paper core thickness | 5-60mm |
| 6 | Honeycomb paper core cross-cut production speed | 1100cuts/min(Thickness6mm,paper core weight90-120g) |
| 7 | Honeycomb hole side length | To be determined |
| 8 | Honeycomb flatness | ±0.1mm |
| 9 | Heating method | Steam heating |
| 10 | Equipment installed power | Approximately50KW |
| 11 | normal production power consumption | 50KW*50%-60% |
| 12 | Total weight of equipment | Approximately80T |
| 13 | Equipment dimensions | 35300mm length×5600mm width×3800mm high |
| 14 | Equipment operation direction | To be determined |
Main Technical Parameters of the Equipment: At the core of excellence, our equipment boasts advanced technical specifications engineered for optimal performance. Designed with precision, it embodies cutting-edge technology that ensures seamless operation, superior output, and consistency in production quality, fostering an environment of innovation and productivity.
| 2600 paper core machine project configuration table |
| | part name | project | Remark |
| 1 | Core paper unwinding unit | Hydraulic Shaftless Paper Holder
(with simple paper changing Components) | |
| 2 | aisle on the platform | Rack Transition Parts | |
| 3 | Core paper gluing unit | Core paper gluing parts ( can be equipped with double- toothed rollers) | |
| 4 | Core paper composite drying unit | Single group ( can be equipped with double pressure rollers) composite traction parts , equipped with 2 groups of composite drying | |
| 5 | Cross cutting machine unit | High-speed cross-cutting machine parts | |

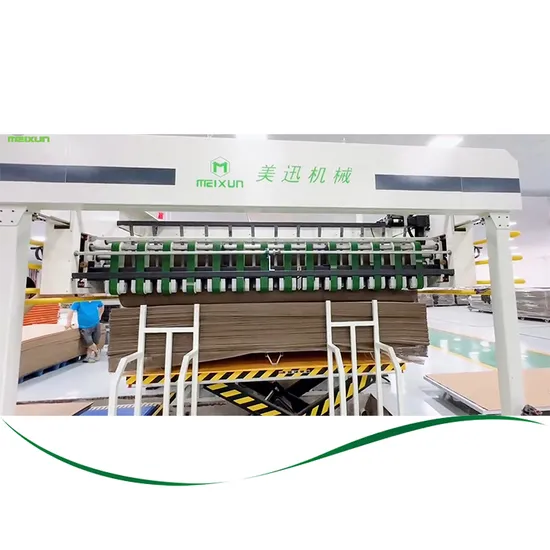

| 6 | Paper core automatic collection unit | Finished paper core automatic collection part | |
| 7 | heating method | steam heating | |
| 8 | Main control component brand | Mitsubishi, Inovance, Lenze | |
