Floor Decking Exterior Garden Aluminium Composite Panel

Product Description

Product Description

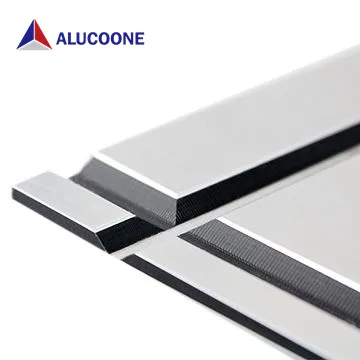

Aluminum composite panel is composed of multi-layer composite materials. The above and below layers are high purity aluminum alloy sheets, between which is non-toxic low density PE core board, and with protective layer on the above shape. Normally KYNAR500 PVDF adopted for the surface coating for outdoor and PE coated for indoor.

General Specifications:

Width	1000mm,1220mm 1250mm,1500mm,1550mm, 1570mm,2030mm / As per order
Length	2440mm, 3200mm,4000mm 5000mm 5800mm,/ As per order
Total Thickness	2mm, 3mm, 4mm, 5mm, 6mm
Alu. Skin Thickness	0.21mm,0.25mm,0.3mm,0.35mm,0.4mm,0.45mm,0.5mm / As per order
Inner Core	Nontoxic PE core,Half unbreakable,Unbreakable,Virgin LDPE,FR Core
Color & Finish	Solid color, metallic color, brush color, mirror, marble, wooden color, glossy, Etc..
Brand	Alucosuper / As per order
Coatings	PE, PVDF, NANO
OEM / ODM	Acceptable

*Colors could be custom-made; Normally PE coating for indoor use, PVDF coating for outdoor use;

Packaging & Shipping
There are 3 kinds of packing of Aluminum Composite Panel (ACP): in bulk, on pallet or in wooden case, normally we can mix the 3 kinds of packing in container:


Technical Data



Application&Features
Advantages of ACP:
Super Peeling Property : Higher than GB/T 17748-1999
Lighter and easy to be worked
Good performance of fire-proof: Conforms to GB8624-1997, there is A grade and B1 grade.
High toughness, bending don't damage paint, strong resistance to impact
Super weatherability: Guarantee: 20 years
Uniform coating and Color variety
Easy to be maintenance
Colors & Patterns could be custom-made

Applications:
1. Exterior wall of building, Curtain wall;
2. Refitting or renovating of old building exterior wall.
3. The balcony, equipment unit, interior compartments
4. Panel, logo plate, display platform.
5. The interior wall decoration panel, ceiling, advertising board
6. Industrial usage, cold car body etc..
And so forth.

Normal Color&Chart
Mainly RAL Colors for aluminum composite panels (ACP):
COLORS PE(Polyester ) Coating PE(Polyester ) Coating: high molecular polymer as monomer and addition of alkyd, is a UV-resistant coating. It can be classified matt and glossy according to coating gloss. The compact molecule structure makes paint surface lustre and smooth, Which assure good printing on the panel surface, With a Warranty of 8-10 years for weather resistance, It is specially applied for internal decoration and signboard.
Special Colors Coating Brushed Panel, Which is made some special Processing on natural aluminium. presents the nature and beautiful brushed appearance together with modern and elegant.Wooden and Stone Panel can be processed by film-sticking and Roller Coating. The former means stick one layer of films with granite or wooden Pattern by Technology. and the later roller coating is painted and roasted for three or four times with better weather resistance.Mirror Finish Panel, Which needs anodic oxidation finishing on the aluminium surface, the finishing makes the surface like a mirror, Mainly used for indoor.
Solid Colors No matter whether a soft white or a vibrant red is selected, Solid colours are always a good choice when a uniform appearance without special effects is required. The gloss of Solid colours is between 30% -40% according to Gardner Scale, High Gloss Colors upon 95% also available. If you mention the colour for placing an order, please specify the gloss rate as well.
Metallic Colors and Special effect Colors The different appearance of colour and gloss under various light conditions and viewing angles gives these surfaces a vivid impression and brings them alive. According to the Gardner Scale, the gloss of metallic colours is between 30%~50% and the gloss of special effect colours is between 70%-80% by one more clear coating.
