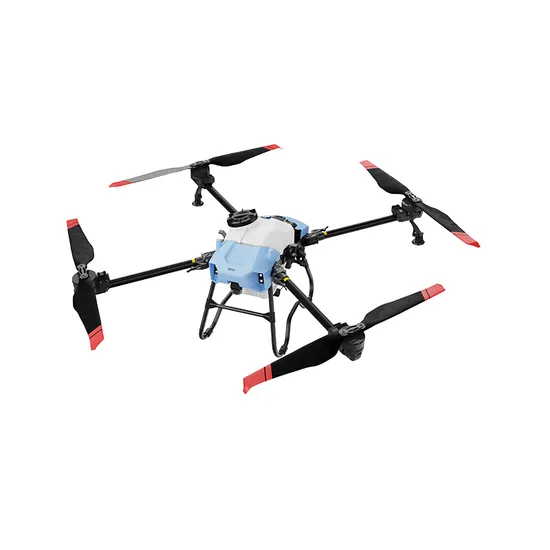

U60 Max Payload Sprayer Drone Jt20L-606 for Farming Agriculture Drone Sprayr

Product Description

55L New Trend And Top Selling Crop Seeder & Sprayer Drone
- OEM & ODM Service -

Main Features
1. Enhanced with a high-efficiency 55L spraying tank and an 80L spreading tank.
2. Equipped with an advanced integrated flight control system,more durable and saving the maintainance cost
3. Dual atomized spraying system equiped with high flow impeller pump.
4. Featuring a foldable and durable design.
5. The arm lock has mechanical and electronic double insurance, making flying safer
6. Real-time monitoring of remaining liquid and fertelizer weight.
7. Supports flight spraying/spreading and RC mapping
8. Whether it's seeding, crop spraying, or fertilization tasks, the BRO U series fulfills all the requirements of farmers engaged in laborious farmwork.
√ Enhanced precision: Drones with advanced sensors and GPS technology can precisely target specific areas of a field, ensuring accurate and efficient application of pesticides or fertilizers. This reduces the risk of over-spraying areas, leading to improved crop health and increased yields.
√ Time and cost savings: Drones can quickly cover large farmland areas reducing the time and labor required for manual spraying. This significantly decreases operational costs for farmers as they no longer need to invest in expensive machinery or hire additional workers.
√ Safety: Crop spraying eliminates direct exposure to potentially harmful chemicals for farmers, reducing the risk of health hazards associated with traditional methods and promoting a safer working environment.

Parameters

Product material	Aviation carbon fiber + aviation aluminum	Hovering time	5~10 minutes (full payload)
Expand size	3075 mm*3050m*860mm		16~20 minutes (No payload)
Folded size	1100mm*850mm*860mm	Water pump	large flow impeller pump
Weight	36kg (without battery)	Nozzle	water cooling precision centrifugal nozzle
	49.5kg (with battery)	Flow rate	20 L/min
Maximum takeoff weight	106kg (near sea level)	Spraying efficiency	20 ha/hours
Spraying tank capacity	55L	Spray width	8-12m (about 1.5-3m from crop height)
Maximum flight altitude	30m	Battery	18s 30000mAh (1000Cycle)
Maximum wind resistance	8 m/s	Charger	High-voltage smart charger
Maximum flight speed	13m/s	Charging time	10~20min (30%-99%)

Description
Features
1. The fuselage adopts a closed design, which can prevent pesticides from entering the flight control system and provide safety guarantee for long-term operation;
2. The plant protection machine has built-in GPS and compass module, with fixed-height and fixed-point flight function, which can well maintain the spray height and spray route accuracy of the operation;
3. The height limit and flight speed limit of spraying operation can be set. The high-pressure spraying system has good atomization effect. Under the wind pressure of the aircraft, the drug mist has the characteristics of strong penetration. Leaf face.
4. Modular design of functional components, easy maintenance and upgrade.
5. Using intelligent plug-in battery
6. Use quick-plug medicine barrel
7. High-pressure brushless water pump is adopted, and the ESC is fully waterproof.
8. Wear the case, optimize the whole machine, and hide the medicine circuit.
9. 7075 aviation aluminum (high grade) is used for the folding part.
10. Alternating spraying function, the spray head can be switched independently.
11. The arm can be quickly disassembled.
So our drones are very popular.
