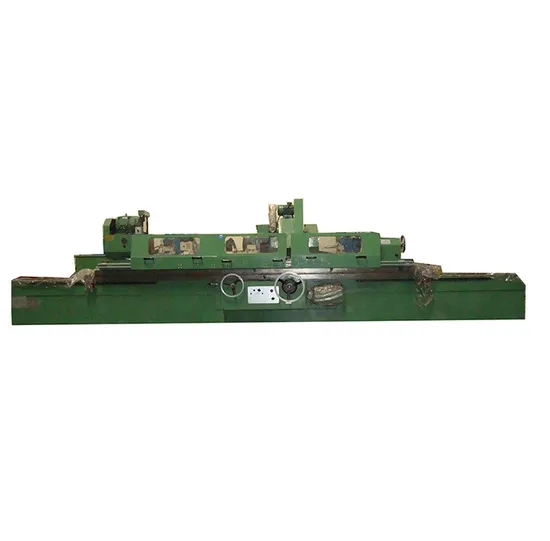

M1450b*1500/2000/3000 Heavy Duty External and Internal Universal Cylindrical Grinding Machine

Product Description

heavy duty cylindrical grinder external and internal grinding machine (NOT CNC)
Product Description
CYLINDRICAL GRINDING MACHINE FEATURES
When conical grinding, the table can be swivelled to either side and exactly positioned by using the scale Oil film between bearing and spindle keeps vibrations at a minimum level, hence achieving outstanding results and top accuracy Precisely balanced spindle head and solid grinding head guarantee extraordinary results at any type of operation Strong reinforcements and solidly designed panels of the machine base makes it resistant to temperature fluctuations and deformations Spindle is mounted from both sides and features adjustable sliding bearings consisting of three segments Hydrodynamic bearing of spindle, therefore no contact between spindle and bearing Longitudinal table feed can be set to automatic mode - hydraulically driven or manual mode - by handwheel Stepless feed adjustments with the option of a programmable hold time at the end of each table movement Hydraulic or manual repositioning of grinding spindle stock Guideways in x- and y-axis are precisely constructed and hand-polished Longitudinal table guide and cross guide of grinding headstock each feature a V-guide and flat guide Product Parameters

MODEL	unit	M1450B*1500/2000/3000
distance between centers	mm	1500/2000/3000
center height	mm	270
dia. Ground (O.D)	mm	25-500
dia. Ground (I.D)	mm	30-200
max. Length ground(O.D)	mm	1500/2000/ 3000
max. Length ground(I.D)	mm	320
max.weight of workpiece	kg	1000
workhead
workhead swiveling angle	°	+90°
center taper	MT	6
spindle speed	r/min	50HZ:20-224
wheelhead
wheel spindle speed	r/min	1330/665
wheelhead rapid travel	mm	100
Max. travel	mm	250
swiveling angle	°	-30°
hand feed per. rev	mm	Rough:4 fine:0.5
hand feed per. gra	mm	Rough:0.02 fine:0.0025
wheel size(OD*W*ID)	mm	500*75*305
peripheral velocity	M/s	35
internal grinding device
spindle speed	r/min	7000
dimension of wheel	mm	Max:175*32*32
		Min:30*25*10
table
hand feed per. rev	mm	5
longtiudinal speed rangle of table	M/min	0.1-3
tailstock
center taper	MT	6
Quill travel	mm	70
motor
wheelhead motor power	kw	7.5
workhead motor power	kw	4
oil pump motor power	kw	1.1
coolant power	kw	0.2
Gross weight	T	14.5
packing dimension	cm	530/600/820*260*210

ACCESSORIES
Detailed Photos

---
