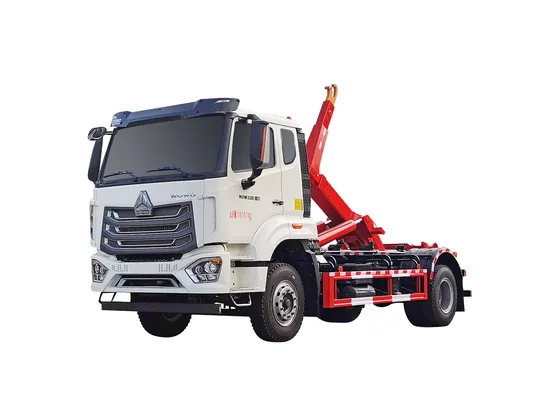

10m3 Hook Lift Garbage Truck

Product Description

One Garbage truck can be fit many garbage bucket, high transfer efficiency, less environmental pollution, is a development trend of city sanitation, is the country vigorously promote advanced products. Hook lift garbage truck is our company combined use of advanced technology at domestic and abroad provide the building with independent intellectual property rights, independent brands (OVO) leading products, has the following advantages and features: Control system: 1. The remote control + manual operation, fast and safety, proprietary technology, industry leading; 2. The hydraulic system: oil cylinder, pump, valve system was special designed by our company, pump and valve for international well-known factory production, reasonable matching, cost-effective; Oil cylinder for domestic famous factories, adopt import seal, stable performance, reliable quality; 3. Safety protection: (1) the main cylinder built-in two-way unloading valve, the end of the stroke to effectively reduce the system pressure to protect the entire hydraulic system and pull arm durable; (2) lift system configuration balance device, no load or heavy load (3) the hydraulic system and the branch oil circuit are set up two-way overload protection, according to the actual working conditions of the movement to adjust the rated pressure set to effectively avoid the system overload or improper use caused by the vehicle (including the vehicle), the vehicle is not moving, (4) hydraulic system are set up oil explosion-proof locking device to prevent the explosion due to tubing safety hazards, to ensure the safety of personnel and vehicles; (5) pull the arm are equipped with hydraulic and mechanical box locking device, correct Use to ensure transport safety. 4. Interlock protection: the action associated with interlock protection, to prevent misuse caused by hydraulic or mechanical failure to eliminate security risks, to extend vehicle life; 5. Hook lift system is made of high strength steel, local special treatment, strong bearing capacity, not easy to deformation. 6. Hook lift system by polishing, multi-channel process to ensure that the appearance and color to meet the requirements; hook arm assembly are through a special bench test and heavy load test to ensure quality!

Chassis model		ZZ1167M4611W
Dimension(L×W ×H)(unloaded)(mm)		7150×2496×3170
Garbage bucket capacity		5400x2300x1500
Approaching angle/Departure angle(°)		19/26
Overhang(front/rear) (mm)		1430/1170
Wheel base (mm)		4600
Max speed(km/h)		80
Curb weight(kg)		8650
Loading Weight(kg)		7350
Engine (Steyr technology, made in China)	Model	WD615.62,water-cooled,four strokes,6 cylinders in line with water cooling,turbocharged and inter-cooling, directly injection
	Fuel type	Diesel
	Power, max(kw/rpm)	196/2200
	Emission	EURO 2
Fuel tanker capacity(L)		350
Transmission	Model	HW13710,10 forward&2 reverse
Brake system	Service brake	Dual circuit compressed air brake
	Parking brake	spring energy, compressed air operating on rear wheels
Steering system	Model	ZF8098
Front axle	Steering with double T-cross section beam
Rear axle	Pressed axle housing, central double reduction with differential locks between axles and wheels
Tyre	12.00R22.5
Electrical system	Battery	2X12V/180Ah
	Alternator	28V-1500kw
	Starter	7.5Kw/24V
Cab	HOWO76 Standard cab, with air container, all-steel forward control,55 hydraulically tiltable to the front,2- arm windscreen wiper system with three speeds, laminated windscreen with casted-in radio aerial, hydraulically damped adjustable driver's seat and rigid adjustable co-driver's seat, with heating and ventilating system, outer sun visor, adjustable roof flap, with stereo radio/cassette recorder, safety belts and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorbers
Garbage bucket details	Garbage bucket capacity is 12M3,wall 3mm, floor 4mm, top covered, manual open window in both side.

More type garbage trucks plz contact with me directlly

---
