| US$90,000.00-100,000.00 | 1 Piece (MOQ) |

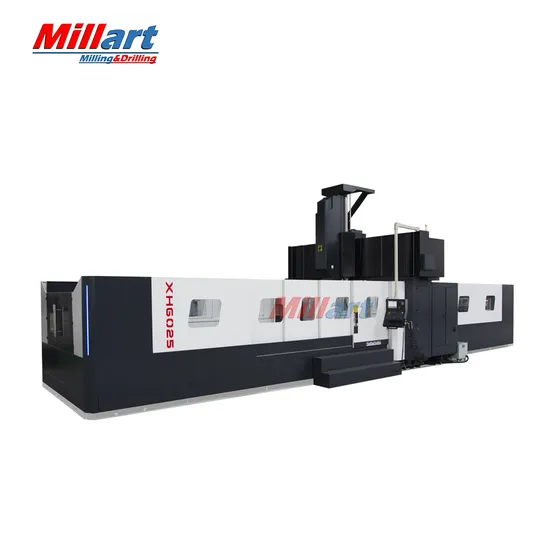

| Item | Unit | XH6025 |
| X axis travel | mm | 6000 |
| Y axis travel | mm | 2700 |
| Z axis travel | mm | 1000 |
| Spindle nose to worktable | mm | 280-1280 |
| Distance between two column | mm | 2700 |
| Leadscrew diameter | mm | 100/63/50 |
| Linear guideway width | mm | 55/55/Rectangle |
| Worktable Length | mm | 6000 |
| Worktable width | mm | 2300 |
| T slot qty-width*distance | mm | 11-28*200 |
| Max loading capacity | Ton | 18 |
| Spindle speed | rpm | 6000/belt |
| Spindle motor power | kw | 22 |
| Fast moving speed | m/min | 10/10/10 |
| Cutting speed | mm/min | 1-8000 |
| Spindle taper | BT50 | |
| Feed motor power | kw | 7/4.5/4.5 |
| X/Y/Z axsis motor torque | Nm | 50/40/30 |
| Tool Magazine Capacity | pcs | Disc/24 |
| Positioning accuracy | mm | 0.025/0.020/0.018 |
| Repeat accuracy | mm | 0.015/0.012/0.012 |
| Length | mm | 145000 |
| Width | mm | 5500 |
| Height | mm | 6000 |
| Weight | kg | 53000 |
| Mitsubishi M80B controller |
| Spindle speed 6000rpm belt type |
| 24 tools disc type |
| Screw type chip conveyor*2 |
| Chain type chip conveyor & chip bucket *1 |
| Nitrogen balance cylinder |
| Air conditioner in cabinet |
| Air gun+Water gun |
| Automatic lubricating system |
| 2-Axis linear guideway from Taiwan Hiwin |
| Ball leadscrew from Taiwan Hiwin |
| Levelling pad,nut and bolts |
| Tools and tool box |
| Spindle oil cooler |
| CTS 20bar |
| CTS 30bar |
| Reneshaw tool probe TS27R |
| Reneshaw workpiece measurement device OMP60 |
| ZF gearbox |
| Gear head |
| Manual angle head |
| Auto angle head |
| Chain type ATC 32 tools |
| Chain type ATC 40 tools |
| HEIDENHAIN scales/1m |
| 4TH Axis rotary table 255mm+tail stock+hydraulic station |
| 5TH Axis rotary table 255mm+hydraulic station |
