Ck6160 CNC Lathe Machine High Quality Horizontal CNC Lathe

Product Description

CK6160 CNC Lathe Machine High Quality Horizontal CNC Lathe

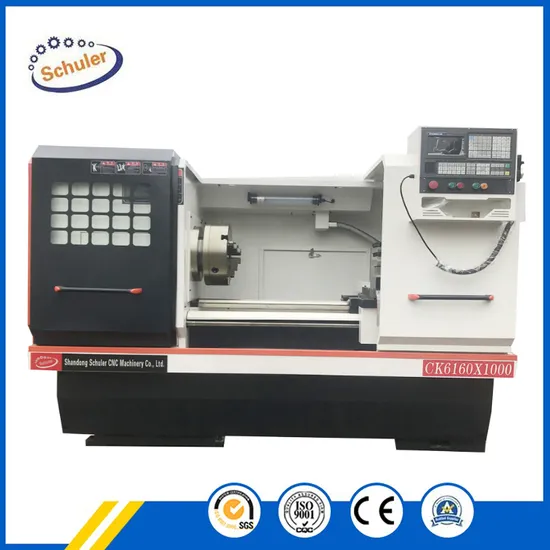

Product Picture:
The main performance characteristics:
Widening high stability bed
Two gear spindle speed,stepless in gear
Wider layor board
Intergrated automatic lubrication system
Application:
The machine is suitable to process all kinds of small and middle-sized shaft and plate workpiece,and could also turn various threads ,circle arc ,circle cone ,inside and outside surface of revolved body .This machine is widely used in sanitary ,value ,electrical appliance ,instrument ,automobile ,motor cycle ,bearing and so on.
CNC Lathe Machine Technical Parameters:

Model	Unit	CK6160
Max swing over bed	mm	600
Max swing over cross slide	mm	395
Max processing lenght	mm	750/1000/1500
X/Z axis travel	mm	X:300 Z:750/1000/1500
Spindle transmission type		Mechanical three gear speed
Spindle speed step		In gear variable speed
Spindle speed	r/min	L :70-560 H:200-1600
Spindle nose		C6
Spindle bore	mm	82/130
Spindle taper		MT6
Spindle motor	kw	11
Chuck size	mm	250
Ball screw dia and pitch		2506/4008
X/Z axis feed motor torque	nm	X:5.5Nm Z:7.5Nm
X/Z rapid traverse	mm/min	X:6mm/min Z:8mm/min
X/Z axis repeatabilty	mm	+/-0.005mm
Processing accuracy		IT6-IT7
Workpiece surface roughness		Ral.6
Tailstock quill dia	mm	75mm
Quill travel	mm	140mm
Quill taper		MT5
Tool post type		4-position electric turret
Cutting tool size	mm	25x25mm
Guide form		One shan one flat
Total power capacity		12KVA
Machine dimension	mm	2950x3610x1820mm
N weight	kg	3150kg

Brand Image:
As a professional manufacturer of CNC lathe machines, we want our customers to know of our commitment to providing the latest products to all customers.
CNC Lathe Machine Details Picture:
CNC Lathe Customer Workshop:
CNC Lathe Package Delivery:
---->We can guarantee on-time delivery
---->Packing: The machine and accessories are fixed in the wooden box, then spray anti-corrosion oil, hang up the desiccant to ensure the safety of the machine during long-term transportation.
---->Export case: wooden box with Tito, two, fumigation wooden box,
---->Mode of transport: transported by sea or rail to the customer's location.
Our Company:
FAQ
1. What level of service do you provide ?
--->Your inquiry will be replied within 24 hours.
2. Technology support by providing operation?training videos?
---->Professional after-sales service team.
We can Provide Technical support online service and Machine operation Vedio
We can provide on-site training and commissioning Vedio
We can Provide Spare parts replacement and repair service
Give reasonable offers with the best quality.
3. What is our advantages?
----> Competitive price: We can meet your budget and best-selling business very well.
OEM Accepted: We can produce customized design.
Good Service: We treat clients as friends and provide problem solving anytime you need.
Good Quality: We have strict quality control system. Good reputation in the market.
Fast & Delivery: We have big discount from forwarder (Long-term Contract).
4. Can you customize the machine for the customer?
---->Yes. We can, if you need customized services, please contact us
5. What is the MOQ?
---->We usually provide 1 set for customers to test.
6.What is your delivery time?
---->The delivery depends on different machines with different configurations. Please contact us to confirm it is in stock or not.
7.What is your payment method?
---->We prefer to do 100% T/T (30% T/T in advance, 70% T/T before shipment)
8.Agents Wanted:
---->We have strong partnerships in Europe, America, South America, India, Southeast Asia and South Africa. We also supply OEM service, and we are looking for agents in these areas. In the further, we want to develop SCHULER to a global brand. Wherever you are from, we are looking forward to explore new market with you.
If any questions pls feel free to contact me
Contact information :
Shandong Schuler CNC Machinery Co.,Ltd.
Add: Tengzhou City ,Shandong Province ,China
Edwin
Mob: +86-18663288651

---
