Fyac100-G13/17m Stainless Steel Series Movement for 100mm Pressure Gauge/Manometer

Product Description

Qingdao Qinyi Instrument & Meter Co., Ltd. focus on pressure gauge movements manufacturing and international marketing. After more than 30 years of development, our factory is now one of the biggest manufactures of pressure gauge movements in China. We have developed more than 200 different types of movements up to now. We have been adhering to the business purpose of "Credit First, Customer First" and the service concept of "Customer services in all directions, Making it more reliable to use".
Our company has strong technical force and complete range of testing methods. Scientific management, mature production technology and complete production process ensure the high quality of our products. Our products are now sold throughout China and exported to South Korea, Middle East, Southeast Asia , South America and Europe including Italy, Bulgaria, Russia etc. Our high quality products are highly praised by the customers all over the world.
The company has obtained ISO9001 quality management system certification
Why choose us? Experience We are a professional manufacturer of pressure gauges movements providing OEM services. more than 30 years of industry experience. High Quality Strong technical force and complete range of testing methods. Scientific management, mature production technology and complete production process. Delivery Time Thanks for our advanced machines and skilled employees, we can always meet the customer's demand for delivery time. Customization We can make not only our standard movements, but also any other types of pressure gauge movements specially designed by our customers.

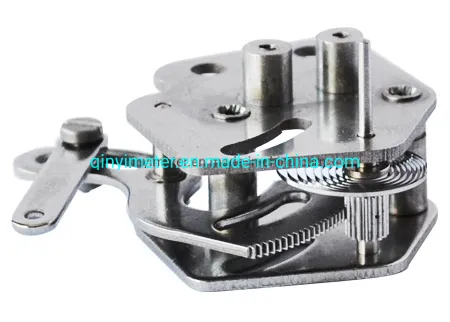

Stainless steel pressure gauge movement FYAC100-G13/17M:
Main technical specifications:

Transmission ratio	180/13=13.85, 176/17=10.35
Pointer shaft span	25.6mm
Module	0.25
Length of shaft extension	10.5mm
Distance between centers	27mm
Distance between holes	13mm
Taper ratio of pinion shaft	1:50
Hole diameter	4.1

We supply high quality movements for pressure gauge. All the movements can be customized by customer if samples are offered.
