Precision High-Speed CNC Tapping Lathe Machine for Efficient Grinding

Product Description

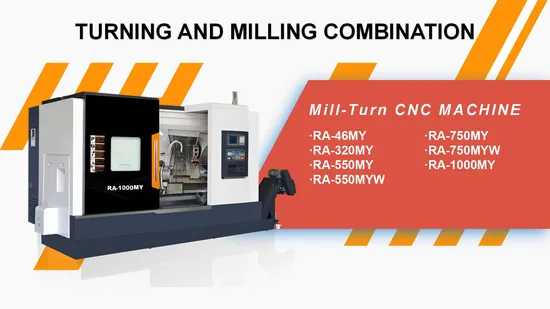

High Speed CNC Tapping Slant Bed Lathe Grinder Machine with Advanced Technology
Product Description

Processing Capability			Unit	RA-1000MY
Processing Capability	Maximum bed swivel diameter		mm	Φ630
	Maximum machining diameter		mm	Φ580
	Maximum machining diameter on the tool holder		mm	Φ370
	Maximum processing length		mm	950
	Maximum bar through-hole diameter		mm	Φ72
Machining dimensions will change with turret selection.
Spindle	Nose of spindle		ASA	A2-8
	Spindle through-hole diameter		mm	Φ87
	Maximum spindle speed		rpm	2500
	Hydraulic cylinders/chucks		Inch	10''
Axis feed	Axis travel	X-Axis	mm	370
		Z-Axis	mm	1120
		Y-Axis	mm	±50
	Travel Speed	X-Axis	mm	15
		Z-Axis	mm	20
		Y-Axis	mm	10
	Rail Type		/	Linear track 45 (ball)
Turret	Number of tool positions		pcs	BMT40-12T with Y-axis
	OD tool holder specifications		mm	25x25
	I.D. Tool Holder Specifications		mm	Φ40
Tailstock	Hard rail as standard		/	Z-axis driven
	Maximum travel of tailstock rail		mm	1250
	Tailstock Sleeve Taper		mm	Morse #5
	Tailstock Sleeve Diameter		mm	Φ100
	Tailstock sleeve travel		mm	120

• Unrivaled Precision: Our Advanced High Speed CNC Tapping Machine is engineered to meet the highest standards of machining precision. It excels in tasks demanding meticulous accuracy, including internal and external precision, roundness, and coaxiality.
• Multifunctional Mastery: This versatile machine effortlessly handles a spectrum of complex processes. From radial and axial cutting to drilling, tapping, hobbing, scribing, and drawing, it accomplishes multiple intricate tasks with remarkable ease.
• Secure Clamping and Positioning:
At the heart of our machine's functionality is the gripper, which steadfastly holds the workpiece in place, ensuring its position remains unaltered throughout the machining process.
By leveraging precise positioning, the gripper maintains the workpiece's accurate alignment with the cutting tool, thereby guaranteeing superior machining accuracy.
• Tailored Clamping Solutions:
Specialized fixtures are designed to address unique machining challenges, specifically for parts requiring holes, shafts, slots, and threads that standard fixtures cannot handle.
Our specialized fixtures are meticulously crafted to meet distinct workpiece requirements, providing innovative solutions to clamping issues that conventional fixtures fail to resolve.

Optional accessories:

Oil-water separator

Oil Mist Absorber

Fully automatic feeding machine

Electric cabinet air conditioner

Rotatable window

Workpiece probes

High pressure water pumps

Chip conveyor

Tool setting arm

Detailed Photos
Control System
Anoher Advantages
• Experience unparalleled precision with our optimal processing conditions and superior production environment, engineered to elevate your manufacturing output.
Our state-of-the-art imported horizontal machining center, vertical machining center, CNC boring machine (enhanced with a rotating table), and gantry guideway grinding machine guarantee exceptional workpiece accuracy. This precision enhancement significantly boosts assembly accuracy and extends the longevity of precision.
• Cutting-Edge Detection Methods
Positioning accuracy is rigorously tested and finely calibrated using advanced laser technology, in strict compliance with the German VDI3411 inspection specification (comprising 5 detailed tests).
Each machine tool is subjected to rigorous processing tests before leaving the factory. This guarantees they not only meet but exceed all actual processing accuracy requirements, ensuring superior performance and reliability.
Product sample
• This advanced CNC machine center seamlessly integrates high-precision milling, drilling, and tapping functionalities, offering unparalleled efficiency and accuracy for your manufacturing needs.
• Engineered to perform with excellence, this machine is capable of CNC machining a diverse range of metal profiles including aluminum, steel, copper, as well as various non-metal materials, ensuring versatility and adaptability in your production processes.
• Its wide array of applications spans across numerous industries such as 3C electronics, rail transportation, aerospace, and linear module guide rails, making it an indispensable asset for diverse industrial operations.
Packaging & Shipping
•Highly Protective
•Unwavering Structural Stability
•Eco-Conscious and Fully Recyclable
Professional Team
FAQ
1. What are the Payment Terms?
A: We accept T/T payments. A 40% initial payment is required when placing the order, and the remaining 60% balance payment should be completed before shipment.
2. What are your trade terms?
A: Our trade terms are flexible and include FOB, CFR, and CIF.
3. When is the delivery time?
A: For our standard machines, we can have them ready within 30 days. Specially customized machines may require additional time. You can place your order based on the delivery timeline we provide.
4. What is your minimum order quantity and warranty?
A: Our minimum order quantity (MOQ) is one set. We also provide a one-year warranty on our machines for your peace of mind.
5. How are the machines packaged?
A: Our machines are carefully packed in robust wooden cases to ensure safe transportation.
6. How can I choose the most suitable machines?
A: Simply provide us with your specifications, and we will recommend the most suitable model for you. Alternatively, you can select the exact model yourself from our catalog.
You can also send us your product drawings, and our team will assist in selecting the most appropriate machines for your needs.

---
