Basic Info.
Application
Enterprise, SOHO
Performance
Non Line Speed Router
Screen
2.4 Inch Touch Panel 320*240
Esim
Built-in Thales/Linksfield Esim Chip
WiFi Band
2.4GHz & 5.8GHz
WiFi Access
32 User Connected
USB Port
Type-C, USB3.0, Support Data Transfer
Production Capacity
10000PCS/Month
Packaging & Delivery
Package Size
17.00cm * 11.00cm * 5.50cm
Package Gross Weight
0.550kg
Product Description

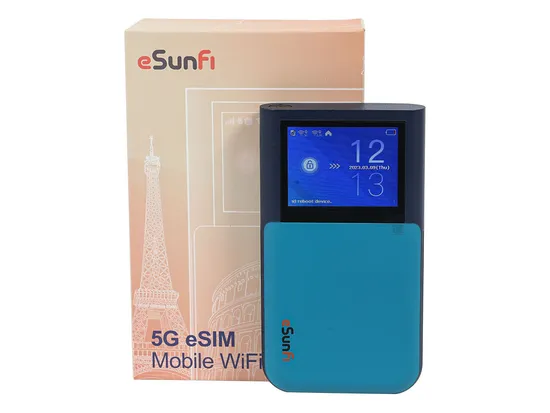

New 5G eSIM WiFi Router WiFi6/6E Dual Band Portable Pocket WiFi Router Supporter 4G 5G Data
Product DescriptionFeature:
1. 5G WiFi6/6E eSim Mobile Hotspot Router,
support 4G LTE 5G Frequency, Qualcomm X62 platform
2. Two version: for EAU version, NA version.
3. Free choice of eSIM or physical SIM mode
4. Support Bluetooth
5. WiFi Tri-band, 2.4 GHz (2x2 MIMO) +5.8G band (2x2 MIMO) +6GHz(2x2 MIMO); WiFi Rate up to 3600Mbps
6. For eSunFi eSIM Pocket Router, user can freely choose the data plans from the different eSIM data providers without any restrictions
7. 2.4 inch touch screen easy to control.
8. Built-in 6000mA battery, about 5~10 hours use.
9. Support 32 Wi-Fi terminals and 1 USB client to access at the same time.
10. Support OEM/ODM
Product Parameters
| Model No. | SHFiEL62 |
| Screen | 2.4 inch touch panel 320*240 |
| USB Port | Type-C, USB3.0, support data transfer |
| eSIM | Built-in Thales/Linksfield eSIM chip |
| Card slot | One 4FF (Nano) UICC/USIM, push slot.. |
| Battery | 6000mAh Li-on un-removable |
| Charger Power | 5V 3A |
| RF functions |
| Cellular | Qualcomm Snapdragon X62 |
| Standard compliant: 3GPP Release 16(both LTE and 5G) |
| Version 1:EAU version | NR Sub-6: n1/ 3/ 5/ 7/ 8/ 20/ 28/ 38/ 40/ 41/ 75/ 76/ 77/ 78/79LTE: B1/ 3/ 5/ 7/ 8/ 20/ 28/ 32/ 38/ 40/ 41/ 42/ 43WCDMA: B1/2/5/8EAU version designed for Europe, Asia, Africa,Oceania countries. |
| Version 2:NA version | NR Sub-6: n2/ 5/ 7/ 12/ 14/ 25/ 30/ 48/ 41/ 70/ 66/ 71/ 77/78LTE: B2/4/ 5/ 7/ 12/ 13/ 29/ 30/ 66/ 71/ 41/ 46/ 48NA version designed for North American countries. |
| Modulation | Sub-6 UL: 256QAM, DL: 256QAM LTE DL: 256QAM, DL: |
| MIMO | Sub-6 DL: 4x4, UL:1x1 |
| 5G/LTE Peak data rate | Sub-6 DL: up to 2Gbps |
| WiFi | IEEE 802.11a/b/g/n/ac/ax | 2.4GHz+5.8GHz+6GHz |
| 2.4 GHz (2x2 MIMO) +5.8G band(2x2 MIMO) +6GHz(2x2 MIMO) |
| AX3600 |
| Wi-Fi AP Features | MU-MIMO |
| Users | Wi-Fi Enabled Device | up to 32 |
| Bluetooth | Support |
Detailed Photos
Company ProfileAbout us
After Sales ServiceOur Service:
♦ Test process : every items will be testing before shipping, to make sure the quality.
♦ Short leading time: 1-2.5 working days for samples or small order, 10-15 working days for bulk order.
♦ One year warranty: for you without trouble of after-sales maintenance.
♦ Quality Guarantee: Return rate is only 0.001.
♦ Support small orders: help your business from small to big.
♦ OEM & ODM are welcome.
>>
