US$2,000.00-5,000.00
|
1 Set
(MOQ)
|
Basic Info.
Laser Visibility
Invisible
Applicable Material
Metal
Cooling System
Air Cooling
Technical Class
Pulse Laser
Laser Wavelength
Fiber Laser
Laser Classification
Solid Laser
Type
Optical Fiber Laser Marking Machine
Marking Method
Scanning Marking
Laser Power
20W/30W/50W/100W
Working Area
50x50mm - 300x300mm
Minimum Line Width
0.012mm
Repeated Accuracy
+-0.003mm
Power Supply
Singlephase 220V/50Hz or 110V/60Hz
Transport Package
Wooden Case
Specification
800x650x1430mm
Production Capacity
5000 Sets/Year
Packaging & Delivery
Package Size
80.00cm * 70.00cm * 110.00cm
Package Gross Weight
80.000kg
Product Description

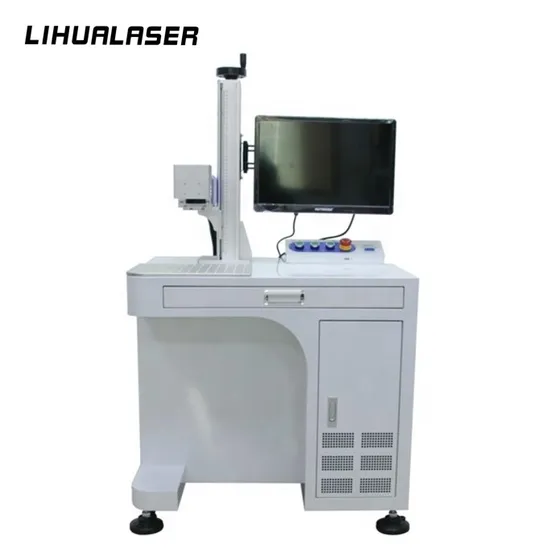

Lihua Good Price Raycus 30 Watt 20w 30w 50w 100w Optical Fiber Fibre Laser Marking
Machine For Metal Brass Our Advantages
Product Parameters
Laser Type
| Fiber Laser
|
Working Area
| 100X100/150X150/200X200/300X300(mm)
|
Laser Power
| 20W/30W/50W/100W
|
Laser Wavelength
| 1064nm
|
Beam Quality
| m²<1.5
|
Application
| metal and partial nonmetal
|
Marking Speed
| ≤7000mm/s
|
Repeated Precision
| ±0.02mm
|
Power supply
| 1 Ph 220V±10%;50/60Hz
|
Cooling Mode
| Air Cooling
|
Supported Graphic Formats
| AI,BMP,DST,DWG,DXF,DXP,LAS,PLT
|
Controlling Software
| EZCAD
|
Working Temperature
| 15°C-45°C
|
Optional Parts
| Rotary Device,Lift Platform,Other Customized Automation
|
Warranty
| 1 Year
|
Gross Weight
| 90KG
|
Detailed Photos
Customer Feedback
♥♥♥♥♥Satisfaction give 5 Star♥♥♥♥♥
If you are satisfied with our machine,please remember to give us 5 stars to support.If you are
not satisfied,please contact us,we will surely give you satified solutions,thanks!
Company Profile
Our Service
FAQ
Q1:I knew nothing about laser machine, what kind of machine i should choose?Very easy to choose,just tell us what you want to do by using laser machine, we will give you perfect solutions and suggestions
once got your further info.
Q2: When I got this machine, but I don't know how to use it. What should I do?English manual & video will be sent out together with the machine . If you still need any furthe helps,our engineer can also guide
you via wechat, skype or video conference for free. If still not workable, our engineer can go aboard to guide you ,but some charge
is needed.
Q3:If some problems happen to this machine during warranty period, what should I do?When customer supply picture & video, free parts will be supplied during machine warranty period if machine have some problems.
While we also supply free life long after-sales service. So any doubts, just let us know, we will give you solutions.
Quality is our culture! Your satisfaction is our motivation!
Don't hesitate.Contact us now!
>>
