Zigbee RF Module CC2530

Product Description

Product Description

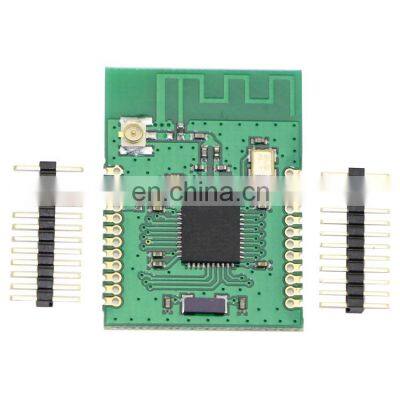

Zigbee RF Module CC2530
The CC2530 RF Module is a low-power, highly integrated 2.4-GHz transceiver
that suitable for systems targeting compliance with worldwide radio-frequency. It’s a
true system-on-chip solution for 2.4-GHz IEEE802.15.4, ZigBee and RF4CE
applications.
Features
2.4-GHz IEEE802.15.4 compliant RF transceiver
Programmable output power up to 4.5dBm
Accurate digital RSSI/LQI support
Suitable for systems targeting compliance with
worldwide radio-frequency
Data rate: 250kbps
256KB in-system programmable flash,
customization 32-,64-,256KB
Two 128 bytes FIFO for TX & RX buffer
CSMA/CA hardware support
Battery monitor and temperature sensor
AES security coprocessor
8KB RAM with retention in all power mode
32-kHz sleep timer with capture
Wide Supply-Voltage Range (2 V–3.6 V)

ITEM	TEST REQUIREMENT	REMARKS
Voltage supply	2.0-3.6V	DC
Center frequency	2400-2483.5MHz	Programmable
Frequency error	±50KHz
Modulation	O-QPSK
Output power	≤4.5dBm	Programmable
Receiving sensitivity	-97dBm
Receiving current	24mA
Transmitting current	29mA	Po=1dBm
Sleep consumption	0.4mA	Power Mode 1
Data rate	250kbps	typical
Transmit distance	100m	At open area
Antenna	50ohm
Store temperature	-40-125°C
Operation temperature	-20-70°C	Base on crystal performance
Package size	22.0*25.5mm
