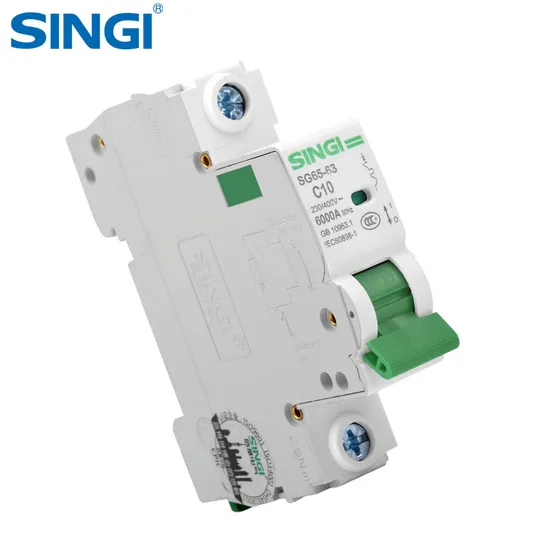

6ka Singi Air Price Overload Protection Electrical MCB Miniature Circuit Breaker

US$0.55
100-999 Pieces
US$0.54
1,000-9,999 Pieces
US$0.53
10,000+ Pieces

Basic Info.

Model NO.
SG65-63-3P
Speed
Normal Type Circuit Breaker
Arc-extinguishing Medium
Air
Installation
Fixed
Structure
MCB
Poles Number
1p-4p
Function
Conventional Circuit Breaker, Circuit-Breaker Failure Protection, Overcurrent Protection, OVP(Overvoltage Protection), RCCB
Certification
VDE, ISO9001-2000, CE, CB, CCC
Keyword
Circuit Breaker
Keyword2
MCB
Keyword3
Electric Circuit Breaker
Keyword4
Miniature Circuit Breaker
Transport Package
Seaway
Specification
6A to 63A
Trademark
SINGI OR OEM
Origin
China
HS Code
8536200000
Production Capacity
500000PCS/Year

Packaging & Delivery

Package Size
9.00cm * 7.00cm * 3.00cm
Package Gross Weight
0.100kg

Product Description

Product Description
Key Specification
Electric Miniature circuit breaker,MCB
original metal components supplier of CHNT&Delixi
Key Parameters:
· CE/CB/ISO9001/CCC certificates;
· Rated voltage:230/400VAC;
· frequency50/60Hz;
· Rated current:6,10,16,20,25,32,40,50,63A;
· 1/2/3/4poles optional;
· Mechniacal life:10,000times;
· Flame-redardant:PA66 nylon material;
· Protection degree:IP20;
· With over load/short circuit protection;
· Standard:IEC60898;GB10963.1
· Enduring tem.55°C
· Breaking Capacity:6KA;
· Lighting/Motor protection optional
Application
SG65-63 high breaking miniature circuit breaker has the features of structure advanced, performance reliable, breaking capacity high, appearance elegant and its shell and parts are made of material with impact resistance, strong flame-retardant feature.
It is suitable to power system of 50or 60 frequency ,Ue 400V and below, Ui 63A and below.
It is mainly applied at office building, residence, for lighting , power distribution and overload and short circuit protection of equipment. Normally, it also can be used as the not frequent transfer of power system. It conforms to the standards IEC60898and GB10963.1.
Technical Parameters
Rated voltage(V) Poles Rated current (A) Rated short circuit breaking capacity
Test breaking capacity(KA) Power factor
230 1 6,10,16,20,25,
32,40,50,63
6 0.75
400 2,3,4 6

Remark:
1.mechanical life:10,000 times(off-on)
2.heat resistance: category 2 (temperature 55°C,relative humidity 95%).
3.wiring is terminal with clamp, cable dia.:25mm2
Current Release Character Diagram
Test current(A) Rated current(A) Requested time Result Start station Remark
1.13In all t>=1h Don't trip Cool
1.45In All T<1h trip heat Current ascends the requested value stably in 5s
2.55In In<=32A 1s<t<60s trip Cool Auxiliary switch closed, power is on
2.55In In>32A 1s<t<120s trip Cool Auxiliary switch closed, power is on
3In(Bmode) All t>=0.1s Don't trip Cool Auxiliary switch closed, power is on
5In(Bmode) All T<0.1s trip Cool Auxiliary switch closed, power is on
5In(Cmode) All t>=0.1s Don't trip Cool Auxiliary switch closed, power is on
10In(Cmode) All T<0.1s trip Cool Auxiliary switch closed, power is on
10(Dmode) All t>=0.1s Don't trip Cool Auxiliary switch closed, power is on
14In(Dmode) All T<0.1s trip Cool Auxiliary switch closed, power is on

Detailed Photos
