Clay Brick Automatic Frame Stacking Machine for Tunnel Kiln Brick Making Machine in Brick Production Line

Product Description

Clay Brick Automatic Frame Stacking Machine for Tunnel Kiln Brick Stacking Machine
Product Description

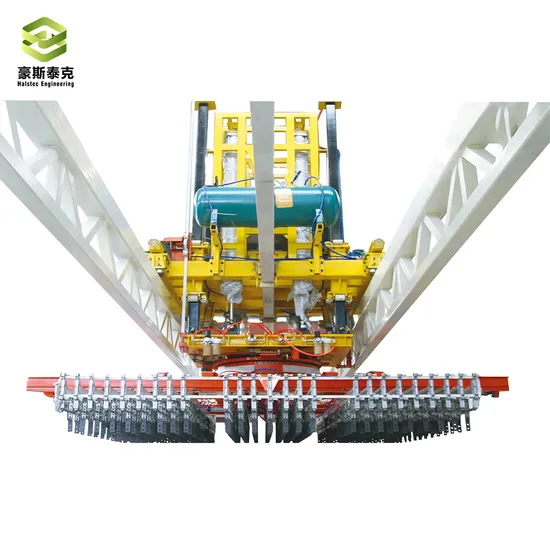

Automatic Stacking Machine is the most advanced automatic brick stacking machine and used to pick up green bricks as a specified mode from the grouping belt, then place onto kiln cars or drying cars. It can be used both in once and twice brick setting system, and available for drying chambers, hoffman kilns, tunnel dryers, and tunnel kilns. Automatic Stacking Machine is the perfected and economic choice for auto brick manufacturing plants.

Working Principle
After cutting machine, bricks will be pushed onto the grouping belt/grouping system. By coordination of cutting machine and grouping system, bricks will be separated as pre-setting mode. Then Automatic Stacking Machine will go down to pick up bricks, then move to the top of kiln cars. Grippers will lower down to place bricks on the kiln car layers by layers, then go back to the original position for the next stacking procedure. Automatic Stacking Machine grippers can be flexibly customized according to kiln section and stacking mode.

Product Parameters

Parameter	Details
Model	MPJ3.6
Size	10000*3400*6500mm
Capacity	25000 bricks/hr
Power	20.4kw

Support and Services
Technical Support and Service for Clay Brick Making Machines
At Clay Brick Making Machines, we provide the best technical support and service to make sure your machinery operates smoothly and efficiently. Our experienced support team is available 24/7 to provide assistance and answer any questions you may have.
We offer technical guidance and troubleshooting assistance to help you identify and resolve any issues you may be experiencing. Our team is knowledgeable in all types of machinery and can provide advice on maintenance and repairs. We also offer consultations and assistance with installation and setup.
We are committed to providing the highest level of technical support and service to ensure your Clay Brick Making Machines operates safely and reliably. If you have any questions or need assistance, please don't hesitate to contact us.

Packaging & Shipping
Clay Brick Making Machines are packaged carefully and securely to prevent any damage during transit. The packaging materials used to protect the machines are bubble wrap, cardboard boxes, and styrofoam. The boxes are then sealed with strong tape and marked with the appropriate shipping labels. The machines are then shipped via air, sea, or land depending on the needs of the customer.

Flow Chart & Finished Bricks

Finished Bricks
Customer Visits & Project Show
Customer Visits
Project Show Uzbekistan
Project: Uzbekistan Rotary Tunnel Kiln
Kiln Location: Tashkent
Kiln Section: 12.98m
Kiln Capacity: 800,000 bricks /day
Materials: mountain earth, coal gangue
Quang Binh, Vietnam
Project: Quang Binh, Brick Factory
Location: Quang Binh, Vietnam
Kiln Capacity: 400,000-500,000 bricks /day
Materials: shale, river sludge, construction waste, industrial tailings
Certificate
FAQ
Q1: What can the machines be used for?
These brick making machines can be used to produce fired red clay bricks, solid bricks, hollow bricks, perforated bricks, fired clay bricks, etc.
If you want to set up one brick factory or brick making plant, to make bricks and sell bricks, then you will need these machines.

Q2: How much the machines or whole production line?
Price could be huge difference according to different production requirements. For example, one day make 100000 bricks, one day 200000 bricks, or one day 300000 bricks, would need different model, different capacity machines, also kilns. So if wanna to get accurate reference price, then better consider what kind of factory you want to own first.
You can get reference invest idea as: 200,000USD, 500,000USD, 1,000,000USD... etc.

Q3: What will be needed for one brick factory?
Actually, when you have an idea to set up brick factory, you have to think about the land, electricity, workshop, brick machines, electrical equipment, brick dryer, brick oven/kiln, etc.

Q4: What should be consider before setup one new automatic brick plant?
- Better to make some investigation for local market requirements, find out which capacity is good to run, for example, one day 100000 bricks, one day 200000 bricks, or one day 300000 bricks?
- Then confirm the brick type and size, and related daily quantity.
- Get the initiatory design for whole line, which can be reference for land purchase.
- Confirm the raw materials condition, better make a material test before purchase land.
- Burn bricks will need burning fuel, so coal powder or natural gas, which one is available.
- Combine the investment to confirm final design for whole brick manufacturing plant.
- Start purchase and construction work...

---
