| Negotiable | 1 Piece (MOQ) |
| A200 Specification | |
| operating system | Windows 7/8.1/10 32and 64bit MAC OS X 10.10/10.11/10.12 above Support smart phone wireless projection screen Compatible with airplay funcation,Better use iOS9/iOS10/iOS11,OS X 10.10/10.11/10.12 above Android 5.0 or above (need install APP) |
| Hardware | 1xVGA,1xHDMI,1xRJ45 1x3.5mm aduio,1xUSB,1x12V1A power |
| Video input resolution | Can do 4K/3840x2160 |
| Video output resolution | Can do 1080p/1920x1200 |
| FPS | 30FPS |

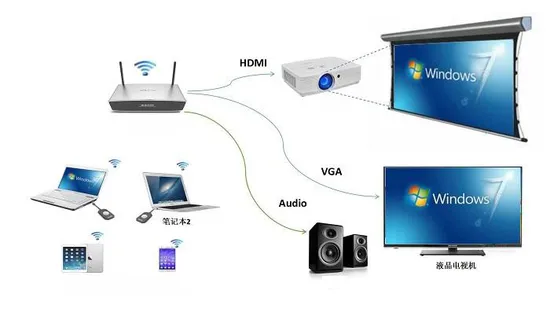

| Video output | Can through HDMI and VGA output the same content at the same time, the resolution of the output can be different |
| Display proportion | equal ratio,4:3,16:9,16:10 |
| Extended desktop wireless projection | support |
| Screen resolution and display scale can be modified | Support |
| Projection code | support |
| The mobile phone under the same network segment automatically searches for multiple receiver devices and screens | support |
| displays the number of sources | Max 1 |
| Access the number of source terminals at the same time | Max 16 |
| Receiving host routing function | support |
| WLAN card | support(2.4G/5G),external |
| Devices connected to the display device user name and type | support |
| Audio output | 44.1KHz/16bit Stereo. Through the HDMI embedded audio and analog line 3.5 mm audio output |
| Audio share type | Screen sharing, the computer without sound, receiver share voice |
| Wireless transmission protocol | IEEE 802.11ac/802.11n |
| wireless transmission rate | Can be 867Mbps |
| Wireless transmission distance | 30m |
| Wireless transmission spectrum | 2.4 GHz or 5 GHz default 5GHz |
| Wireless encryption protocol | WPA2-PSK |
| usage mode | Insert the USB key connection automatically, automatic running, to share a key Don't need to install software on the PC, do not need to take computer wi-fi |
| Transmission delay | Average delay is less than 100mS |
| Reverse control mode | 1, support the mouse reverse control; 2, support 16 points touch reverser control |
| Standby screen customization | support |
| WEB management interface | support |
| modify the spectrum and the channel | support |
| Can choose the channel number | 9(5G)/11(2.4G) |
| Modify the video output resolution | support |
| Modify the WiFi name and password | support |
| The power/energy consumption | Host:12V/1A, 5W; USB KEY:5V/500mA, 1.5W. |
| Temperature range | Working:+5°C ~ +40°C store:-20°C ~ +60°C |
| Humidity range | store:0 ~ 90% working:0 ~ 90% |
