US$21,200.00-30,500.00
|
1 Piece
(MOQ)
|
Basic Info.
Process Usage
Metal-Cutting CNC Machine Tools, CNC Non-Conventional Machine Tools, Metal-Forming CNC Machine Tools
Movement Method
Linear Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Performance Classification
High-End CNC Machine Tools
Certification
GS, CE, ISO 9001
Distance From Spindle End Face to Workbe
120-850mm
Distance From Spindle Center to Worktop
713mm
Workbench Area
1100*600 mm
Spindle Taper
Bt40-150 / Bt50
Specification
2700*2300*2750
Production Capacity
30sets/Month
Packaging & Delivery
Package Size
270.00cm * 230.00cm * 275.00cm
Package Gross Weight
6200.000kg
Product Description

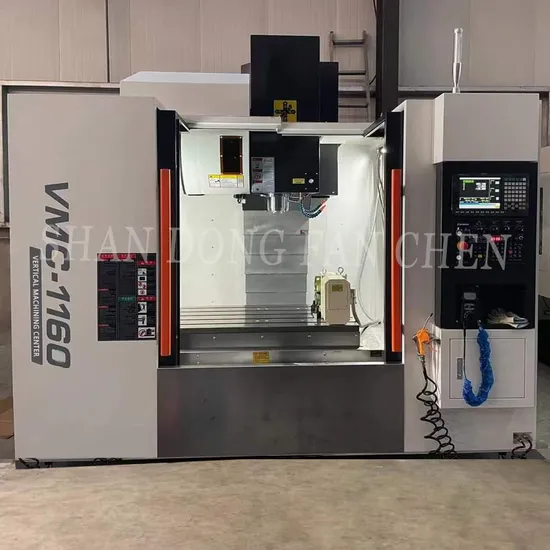

| project | unit | VMC1160 |
| X axis itinerary | mm | 1100 |
| Y axis itinerary | mm | 600 |
| Z axis itinerary | mm | 600 |
| Number of workbench | pcs | 1 |
| Distance from spindle end face to workbench center | mm | 120-850 |
| Distance from spindle center to worktop | mm | 713 |
| Spindle speed | rpm | 8000 |
| Spindle power | KW | 11 |
| Spindle taper | | BT40-150 / BT50 |
| Workbench area | mm | 1100×600 |
| Maximum load of the workbench | kg | 800 |
| T-type slot size | mm | 5-18-120 |
| X-axis rapid displacement | m/min | 24 |
| Y-axis rapid displacement | m/min | 24 |
| ZZ-axis rapid displacement | m/min | 24 |
| Cut into give speed | mm/min | 1-10000 |
| Controller system | | FANUC |
| X / Y / Z guide rail form | | Three axis rail |
| X / Y / Z ball guide rail | mm | 45/45/45 |
| Tool magazine form | | Disk tool magazine |
| tool magazine | pcs | 24 |
| Tool change time | s | 2.5 |
| Accuracy detection standard | | JISB6336-4:2000/GS/T 18400.4-2010 |
| X / Y / Z axis accuracy | mm | ±0.0075 |
| Repeat positioning accuracy of the X / Y / Z axis | mm | ±0.005 |
| machine weight | Kg | 6200(±5%) |
| Outer dimension of the machine tool (length, width and height) | mm | 2700×2300×2750 |
Optional
| Spindle | Electric spindle 18000-24000 turn with turning function |
| Tool magazine | Disk 24 tool magazine |
| Rotating platform | The fourth axis of the platform Cradle turn Cradle with turning function transfer table |
| Controller system | KND Siemens 840 Fanuc Mitsubishi Syntech GSK( China Guangzhou Digital) /H N C( Huazhong Central China) |
FAQ
1.:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
>>
