Basic Info.
Nature of Source Flow
Active Inverter
Certification
SAA, CE, ROHS, ISO9001, CCC
Circuit Topologies
Full-Bridge Type
Nature of Wave String
Sine Wave Inverter
Output Wave Form
Pure Sine Wave
PV Input Voltage
38V to 150V
Transport Package
Ply Packing
Production Capacity
1000000/Year
Product Description

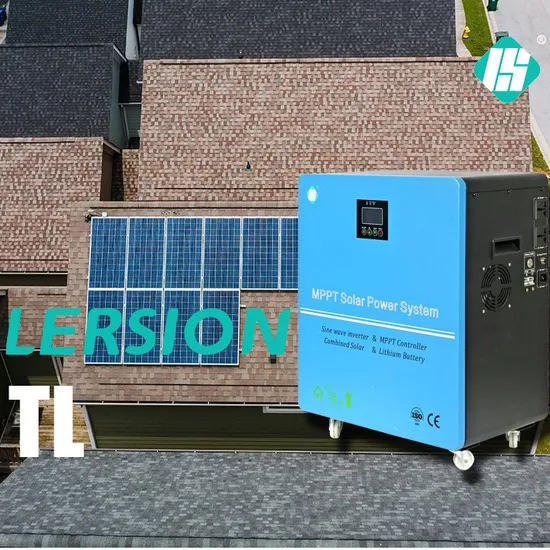

Tl Series 2kw Solar Power Inverter with 2.5kwh Integrated Lithium Battery
TL Series All in one storage solar inverter 2kw plus 2.56kwh Lithium battery Detailed Photos
| Model No. | TL200 | TL300 | TL400 | TL500 | TL600 |
| Rated Power | 2KW | 3KW | 4KW | 5KW | 6KW |
| Peack Power | 6KW | 9KW | 12KW | 15W | 18KW |
| Battery Voltage | 24V | 48V | 48V | 48V | 48V |
| Battery Type | LFT Lithium battery |
| Battery Capacity | 2.56KWh | 5.12KWh | 5.12KWh | 5.12KWh | 10.24KWh |
| Built in MPPT charger |
| Max Charge current | 60A | 60A | 60A | 100A | 120A |
| PV input range | 24V:38V to 150V,48V:65V to 150V |
| Max PV Input | 1440W | 2880W | 2880W | 4800W | 5760W |
| AC Input |
| Phase | L+N+G |
| Input voltage | 110V or 220V.110:85v to 138v,220v:170v to 275V |
| Input frequency | 45HZ to 65HZ |
| AC Output |
| Output voltage | Inverter Mode:110V or 220v,+-5%,AC mode:110V or 220v,+-10% |
| Frequency range(AC Mode) | Automatic tracking |
| Frequency range(Inverter Mode) | 50HZ/60HZ +-1% |
| Overload capapcity | Under AC mode: 100% to 110%:10 mins 110% to 130%:1 min over 130%:1s |
Under Inverter mode: 100% to 110%:30s 110% to 130%:10s over 130%:1s |
| Conversion time | less than 10ms for typical loads |
| Waveform | Pure sine wave |
| Effcienty | More than 85% |
| Working conditions |
| Operation temprature | 0 to 40 degree Battery life decreases at ambient temperatures above 25 degrees Celsius |
| Operation humidity | less than 95% without condesing |
| Operation Altitude | <1000m(every increase of 100m,it will reduce output of 1%) max 5000m |
| Noise | less than 58dB the distance to machine is 1 meter |
| Management |
| Display | LCD+LED |
| Communication interface | RS485 |
FAQ
1. What is your company strength?
Strong R&D Team Headquartered in Shanghai, Lersion R&D team has over 50 engineers. Relying on Shanghai's rich talent resources and innovating mechanisms, through deep cooperation with Shanghai universities, we design and continually improve solar inverters and battery circuit,and have obtained over 30 patents.
2. What is your product advantage?
1KW-500KW Full Series Solar Inverter available Germany Infineon IGBT Module America DSP Chip Technology Color Touch screen *More Durable*More Safe* more stable *High End LiFePO4 & Gel battery Expert Grade A Lithium Battery Long cycle life >6000 cycles High Efficiency & Fast Charging Intelligent Battery Management Compatible with Various Inverters
3. How do you control the product quality?
a) For materials, we have IQC departments and the IQC testing follow MIL-STD-105E standard. b) In production have 4 times function testing. c) All of our products with 100% burn-in testing. d) 100% QC testing before delivery.
4. Do you accept OEM/ODM?
Yes, we do.
5. Are you factory ?
Definitely.
6: Can you provide full solar system?
Yes,we provide full set soalr system ,with system design and full system equipments provided
7.How about the delivery time?
3 to 5 days for sample; 7-15 days for bulk order.
8.What is the warranty of inverter?
A4: 2 years ,3 years,5 years Etc
9: How to solve the technical problem?
24 hours after-service consultancy just for you and to make your problem to solve easily.
>>
