Product Description
Product Description

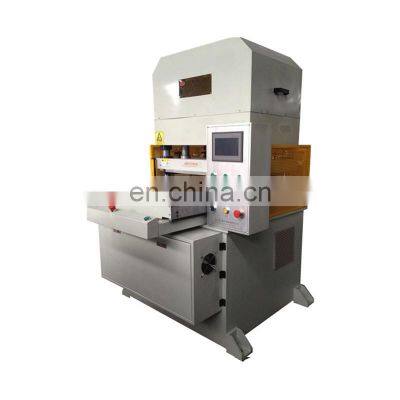

DP-650P kiss cut die cutting machine
Die cutting video by below mould :
/watch?v=eg176HJDvcA
https://youtu.be/eg176HJDvcA
Below material die cutting video : https://youtu.be/aOfH0agQZ6M
Product Description
Functional characteristics:
1, down die cutting board can be easily press automatically in and out ,easy and flexible operation;
2, Electronic positioning ,precision and accurate,and the precision and accuracy cann be controlled in 0.01 to 0.03mm ,push board back forth precision can be controlled in 0.02 to 0.05mm.
3, There is shockproof board installed at under-chassis ,therefore ,the machine body is stable and reliable.
4, Applies to punch electronic materials such as aluminum foil ,PET ,protective film through cutting or kiss cutting ,all kinds of precision components of stamping forming.
5, PLC +man-machine automatic programming control ,oil system adopts integrated control ,and there is photoelectric protection.
| ITEM NO. | Capacity | table-board underneath size | Press base size | Table height | HORSE POWER | Max spacing | Max range |
| | TON | mm | mm | mm | HP | mm | mm |
| DP-650 | 40 | 600*650 | 600*650 | 110 | 7.5 | 100 | 100 |
| accuracy | Machine size | Packing size | CBM | weight | Gross weight |
| ±0.01mm | 1320X1200X1900mm | 1.6X1.4X2.1 M3 | 4.7M3 | 2 ton | 2.5Ton |
Touch screen and operation panel
| Configuration Detail |
| l PLC 1 Set Mitsubishi |
| l Touch Screen 1 Set Shanghai EV |
| l Safety Photoelectric 1 Set Taiwan |
| l Automatic Depth Adjustment Motor 1 Set Taiwan |
| l Main Motor (7.5KW-4) 1 Set QL Taiwan |
| l Oil Pump 1 Set Danxin Taiwan |
| l Magnetic Valve 1 Group Danxin Taiwan |
| l Main engine Oil Cylinder 1 Set Self-production |
| l Feeding Oil System Cylinder 1 Set Self-production |
| l Air Cooling System 1 Set Self-production |
| l Oil Seal 1 Set Japan |
| l Feed Plate Slippery Course 2 Bar HIWINSH |
| l PE Plate(10mm) 1 Piece Made in China |
>>
