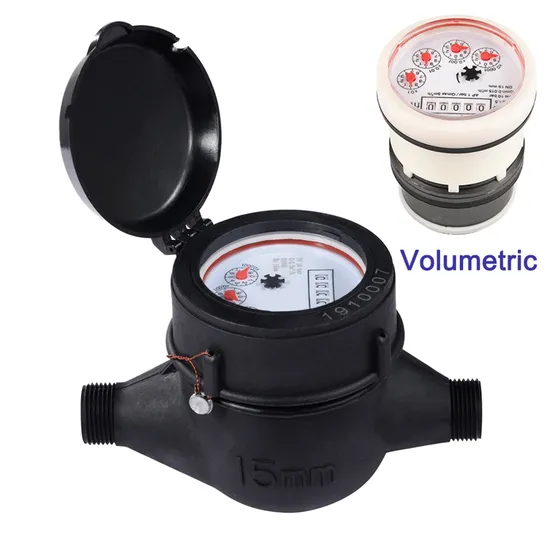

Volumetric Horizontal Type Plastic Water Meter, R160/ R200

Product Description

Volumetric Piston Horizontal Type
Material body: Nylon Plastic
Size: DN15 (1/2" ), Available for cold water(40°C)
Accuracy: Class C/ R160/ R200
Easy for interchange & maintenance
MAIN TECHNICAL DATA According to ISO4064 (GB/T778.1-1996) Standard

Meter size Dia DN (mm)	Class	qs Overload Flow	qs Nominal Flow	qs Transitional Flow	Qmin Min Flow	Min Reading Lectura	Max Reading Lectura
		m3/h		L/h		m3
15	C	3	1.5	22.5	15	0.0001	99999

MAIN TECHNICAL DATA According to ISO4064 (GB/T778.1-2007) Standard

DN SIZE	Mm Inch	15 1/2"
Q4(m³/h)		3.125
Q3(m³/h)		2.5
R160	Q2(L/h)	25
	Q1(L/h)	15.625
R200	Q2(L/h)	20
	Q1(L/h)	12.5
Min reading(m³)		0.0001
Max reading(m³)		99,999
Max pressure(MAP)		16
Max loss(ΔP)		63
Max temperature		T50
Pulse output option		Vmax=24V, Imax=100mA, Pmax=2W

INDICATING ERROR
At low zone is ±5% from minimum flow rate (qmin) to transitional flow rate (qt) exclusive boundary
At high zone is ±2% from transitional flow rate (qt) to overload flow rate (qs)

DIMENSIONS AND WEIGHT

Meter size Dia DN (mm)	L Length	B Width	H Height	Connrcting Thread D			Weight Kg
	mm
15	165	99	104	G 3/4B			0.65

WORKING CONDITION
Water temperature:≤40ºC for cold water meter
Working pressure:≤1.6Mpa

---
