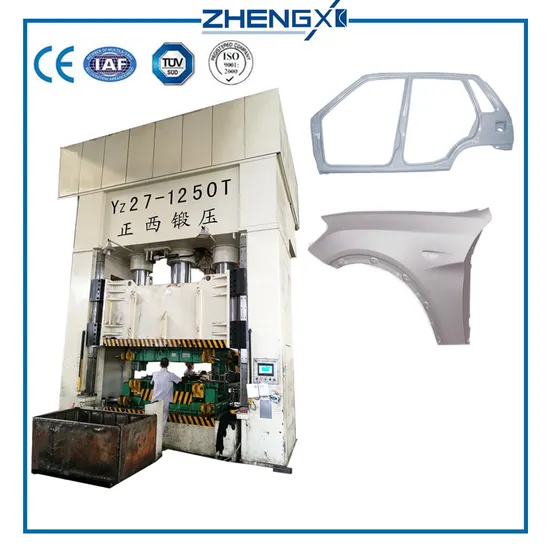

Automobile Stamping Parts Hydraulic Press Forming Machine

Product Description

Automotive Driving the future with Zhengxi
System solutions for the automobile industry The world is becoming more and more mobile. Nowadays, it is easier than ever to get from point A to point B. Quickly. In comfort and safety. With performance and style. With energy efficient cars. Thanks to new materials that make vehicles lighter and safer.
With Zhengxi, you can put the solutions of the future onto the road. As a global leader in forming technology, we deliver systems, tooling, process expertise and services for the entire automotive industry. We respond to the unique requirements of each customer - with high-quality products and first-class service to support the challenges presented by the market. We are working to exceed the expectations of the future as well, with innovative solutions for the automotive industry.
Fast and reliable workpiece transport
Zhengxi is the technological and China market leader in forming equipment. We offer presses, automation, dies, process know-how and services for the entire metal forming industry. Our clients include car manufacturers and their suppliers, as well as companies in the forging, appliance, packaging, energy and electrical industries. We are the market leader in coin minting presses and supply systems solutions for the aerospace, railway and large pipe industries. Innovation is in our DNA: Zhengxi technology ensures maximum productivity, high levels of energy-efficiency and reliable mass manufacturing - also of lightweight parts.
Automation for Press lines
As a system supplier for forming technology, Zhengxi integrates the specific automation solution into hydraulic, mechanical and servo press lines - from the blank to the finished part - depending on the spectrum of parts, the output capacity and the space requirements. Press inter-linking can be implemented with conventional robot solutions or with the innovative Crossbar automation systems developed by Zhengxi . Regardless of which solution is used, the transfer of the work pieces is performed without intermediate storage, with high production reliability and at high speed - directly from one die to the next.

In addition to the use of conventional presses (mechanical or hydraulic), lines for manufacturing shaped blanks are preferably equipped with servo presses nowadays. Zhengxi Servodirect Technology makes it possible to adjust the motion sequences of the press specifically to each blanking die. This increases the output capacity and the service life of the dies significantly. The equipment can be designed for processing very different materials, such as aluminum or high-strength steel. It enables you to process materials with sensitive surfaces smoothly at high stroke rates.
Parameter

Model		Unit	Yz25-160T	Yz25-160TA	Yz25-200T	Yz25-200TA	Yz25E-200TA	Yz25E-315T	Yz25E-315TA
Nomainal force		KN	1600	1600	2000	2000	2000	3150	3150
Max.Liquid working pressure		MPA	23	23	12.5	12.5	25	22.5	22.5
Return force		KN	260	260	470	470	300	600	600
Slider stroke		mm	1200	1200	600	600	1000	750	750
Open height		mm	1600	2600	1620	1300	1700	1700	1700
Slider speed	Down	mm/s	150/75	150/75	100	100	150	150	150
	Press	mm/s	20	15	15	15	12	15	15
	Return	mm/s	75/100	60/90	60-80	60-80	130	90	90
Worktable size	L-R	mm	2400	2400	2880	2880	2400	2800	2600
	F-B	mm	1980	1900	1900	1900	2460	2500	2200
Slider under Max.distance from the bench	L-R	mm	2400	2400	2200	2200	2400	2800	2800
	F-B	mm	1980	1900	1900	1900	2460	2500	2500
The moving workbench load		t	10	-	-	16	15	25	25
The moving workbench moving distance		mm	3000	-	-	3400	3000	3000	3000
Overall dimensions	L-R	mm	3600	3250	2920	2920	8700	5000	4800
	F-B	mm	5820	2500	2580	2580	3700	3800	3500
	H	mm	5200	6300	5320	5320	5600	5400	5400
Motor power		KW	25.2	20	44	47.3	31	-	-
Structure type			Four-column	Four-column	Four-column	Four-column	H-frame	H-frame	H-frame

After-sale service
1.Personnel training
Free training for about one week.
2. After-sale service
One year warranty.During warranty period,free maintenance service can be provided.(except man-made faults or damages arising from irresistible natural factors)
3.Installation
Customers need to pay the commission to our proffessional engineer, and travel expense is on foreign customer.(Including round ticket and accommodation cost)

---
