US$7,000.00-10,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Transmission
Hydraulic Transmission
Drive Type
Electric Drive
Certification
CE, ISO9001: 2000
Maximum Digging Height
2580 mm
Maximum Digging Depth
2060 mm
Max Digging Radius
3160 mm
Application
Construction Digging
Engine Brand
Kubota / Koop
Transport Package
Packed in Wooden Case
Specification
4325/1655 *1100*2272mm(L*W*H)
Production Capacity
50 Set/Sets Per Month
Product Description
1.8 ton Excavator (18-1)
Product Parameters
Performance Parameter
|
Engine
| KUBOTA / KOOP
|
Power
| 10.2kw/14kw
|
Mainvalve
| BEIFANG
|
Working weight
| 1800 kg
|
Bucket capacity
| 0.03 m3
|
Gradeability
| 30
|
Swing speed
| 12 RMP
|
Machine size
|
Overall legnth
| 4325/1655 mm
|
Overall width
| 1100 mm
|
Upper width
| 990 mm
|
Overall height
| 2272 mm
|
Standard track shoe width
| 180 mm
|
Track Gauge
| 920 mm
|
Min.ground clearance
| 119 mm
|
Tail turning radius
| 790 mm
|
Track ground length
| 1050 mm
|
Track length
| 1545 mm
|
Operating Range
|
Max digging height
| 2580 mm
|
Max.unloading height
| 1637 mm
|
Max.digging depth
| 2060 mm
|
Max.digging distance
| 3160 mm
|
Min.turning radius
| 1711 mm
|
Max.height at minimum turning radius
| 2048 mm
|
Boom swing Angle(left)°
| 75
|
Boom swing Angle(right)°
| 45
|

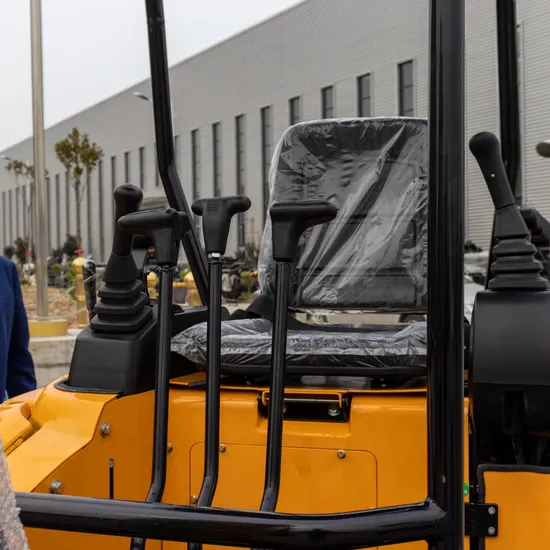

Detailed Photos
Company Profile
Packaging & Shipping
FAQ
1.What kind terms of payment can be accepted?For terms of payment, L/C, T/T, Western Union (can be) could accepted.2. What certificates are availble in Machinery?For the certificate, we have ISO,EPA,SGS and CE.3.What about the delivery time?7-20 days after receiving the deposit.4.What about the warranty time?12 months after shipment or 2000 working hours, whichever occurs first.5.What about the Minum Order Quantity?The MOQ is 1 pcs.
6.How to show your manufacture to customers?It depends on you,if you have time,you can come to visit our manufacture. If you do not have time,then we can have vedio call,then show you around our workshop. Our workshop is working from 8:00 am to 5:00pm in Beijing Time!
>>
