Good Quality HD Satellite TV Receiver

Product Description

Good quality HD Satellite TV Receiver
Product Description

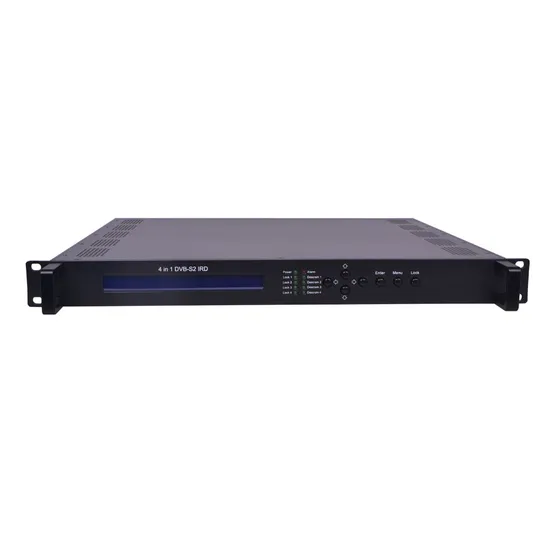

Product description 1.1 OutlineSFT358X IRD is SOFTEL's new design which integrates demodulation (DVB-C, T/T2, S/S2 optional), de-scrambler and multiplexing in one case to convert RF signals into TS output.
It is a 1-U case which supports 4 tuner inputs, 1 ASI and 4 IP inputs. The 4 CAMs/CIs accompanied can descramble the programs input from encrypted RF, ASI and IP. The CAM requires NO unsightly external power cords, cables, or additional remote control device. BISS function is also embedded to descramble programs.
To meet customers' various requirements, SFT358X is also designed to de-mux programs from any input, and output TS over 48 SPTS. 1.2 Features 4 Tuner inputs (DVB-C, T/T2, S/S2 Optional) 1 ASI & 4 IP (UDP) input for de-mux One CAM can decrypt multiple programs from Tuners/ASI/IP Support BISS descrambling(Up to 120 Mbps) IP (48 SPTS) over UDP and RTP/RTSP output; 4 groups of independent ASI out for tuner/IP passthrough (one-to-one) Support maximum 128 PID mapping per input Support Diseqc function LCD display, Remote control and Firmware, web NMS management Updates via web High quality and breakthrough price 1.3 Specifications

Inputs and Outputs
Inputs	4x RF (DVB-C, T/T2, S/S2 optional), F type
	1×ASI input for de-mux, BNC interface
	4xIP input for de-mux (UDP)
Outputs(IP/ASI)	48*SPTS over UDP, RTP/RTSP.
	1000M Base-T Ethernet interface (unicast/multicast)
	4*MPTS over UDP, RTP/RTSP.
	1000M Base-T Ethernet interface, for RF in passthrough (one-to-one)
	4 groups BNC interface
Tuner Section
DVB-C
Standard	J.83A(DVB-C), J.83B, J.83C
Input Frequency	47 MHz~860 MHz
Constellation	16/32/64/128/256 QAM
DVB-T/T2
Input Frequency	44MHz ~1002 MHz
Bandwidth	6/7/8 M
DVB-S
Input Frequency	950-2150MHz
Symbol rate	1~45Mbauds
Signal Strength	- 65- -25dBm
Constellation	1/2, 2/3, 3/4, 5/6, 7/8 QPSK
DVB-S2
Input Frequency	950-2150MHz
Symbol rate	QPSK/8PSK 1~45Mbauds
Code rate	1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10
Constellation	QPSK, 8PSK
System
Local interface	LCD + control buttons
Remote management	Web NMS Management
Language	English
General Spec
Power supply	AC 100V~240V
Dimensions	482*400*44.5mm
Weight	3 kgs
Operation temperature	0~45ºC
