Flexible Plate Making Solvent Washing Machine Photopolymer Flexo Printing Plates Offset Printing Plate Maker Water Washing Machine

Product Description

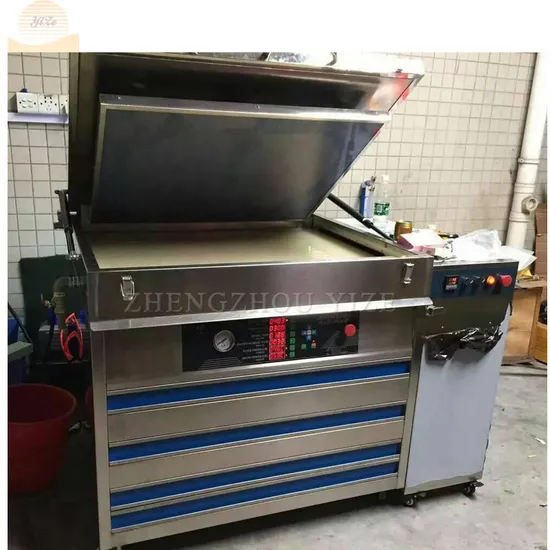

Product Description 1. Solvent washing plate making machine:
(1). It integrates the functions of exposure, plate washing, drying and adhesive removal;
(2). Adopted the original imported Philips lamp;
(3). Professional configuration of high efficiency electronic ballast;
(4). Strong vacuum device, high strength super flat air extraction plate;
(5). Drying under constant temperature by circulating hot air
Integrated structure, small footprint, use it with supporting small flexible printing machine.
Applicable to: 1.14mm-3.9mm and other different thickness of imported or domestic flexo, suitable for the production of cartons,
tape, washing water marks, labels, paper towels and other flexible version.
2.Water washing flexo plate making machine (1).It can be used for making washing flexible version and solid resin version, realizing one machine;(2).It integrates the functions of exposure, plate washing, drying and adhesive removal;
(3). Automatic circulation of water solvent, constant temperature heating, filtration;
(4). Plate automatic paste, flat efficient cleaning;
(5). High speed, stable vacuum suction, high strength super flat suction plate;
(6). Real reproduction of high - net line graphics and text.
It is suitable for making 1.14mm and 1.7mm washed flexible plates, washing resin plates with a thickness of 0.95mm such as Plitto. It is suitable for label printing such as circular flattening and rotary machines
Product Parameters

Model	Exposure size(mm)	Voltage	Power	Dimension	Weight
YZMP430	400×300	220v 50Hz	1.5Kw	530*450*940mm	60 Kg
YZMP450	450×600	220v 50Hz	2Kw	620*450*950mm	115Kg
YZMP960	900×600	220v 50Hz	4Kw	1080*870*1100mm	185Kg
YZMP1280	800×1200	220v 50Hz	4.8Kw	1380*1000*1100mm	312 Kg

Detailed Photos
Packaging & Shipping
After Sales Service
Company Profile
FAQ

---
