Customized DONGFNEG 4*2 RHD 2T knuckle crane boom mounted on cargo truck for sale,
The cargo crane is also called truck mounted crane, crane truck, truck with crane, etc. The truck with crane is mainly used to lift and transport the constuction material, equipment or other large goods by municipal corporation, mining engineering department, plant department,etc
As a professional cargo truck crane supplier in China, we Chengli Special Automobile Co., Ltd. manufacture the crane boom is from 2 ton to 160 ton. The drive type of our truck crane for sale are 4x2, 6x2, 6x4,8x4,etc. The truck mounted crane for sale are telescopic boom truck mounted crane, knuckle boom truck mounted crane.Also, Our crane trucks are 360 degree roatate. It is with high quality, long life, high speed, etc. The crane for truck can be crane, chengli crane, sany crane, unic crane, kanglim crane, etc. More information, please feel free to contact with Ms. Anita. The hot sale line is 0086 13329899995.
Customized DONGFNEG 4*2 RHD 2T knuckle crane boom mounted on cargo truck for sale, adopts Dongfneg duolika 1730mm RHD single row driver cab, CY4100Q 90Hp diesel Euro 2 engine, 3300mm wheelbase, 7.00R16 rail tires, power steering and air cut braking, etc,
The overall dimension(L*W*H) of dongfeng 4*2 RHD 2tons knuckle truck with crane is 5995×1980×29509(mm); while the cargo body dimension(L*W*H) is 3500×1880×400(mm). Clients choose to install XCMG brand 3.2tons 3 sections knuckle crane boom(crane boom model： SQ3.2ZK2, lifting height: 10m； working height: 7.6m).
If you're interested in our truck with crane, please send email to truck0011@163.com or talk to Anita by Whatsapp/Wechat/Mob.: 0086 13329899995.

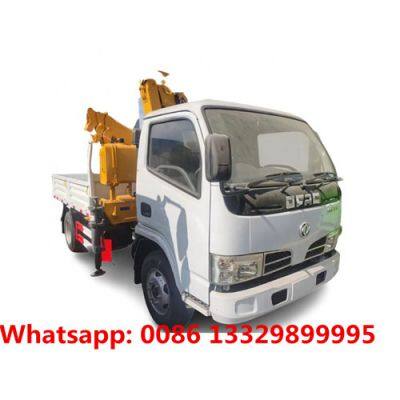

More pictures of Dongfeng 4*2 RHD 2T knuckle crane boom mounted on cargo truck is as below.
HOT SALE! DONGFENG 4*2 RHD 2T knuckle crane boom mounted on cargo truck for sale
Main technical parameters of Dongfeng 4*2 RHD 2T knuckle crane boom mounted on cargo truck is as below.
Product name
| Dongfeng RHD 2 tons knuckle crane boom mounted on truck for sale (CLW5060JSQ3)
|
Chassis type
| EQ1060
|
Parameters
| Overall dimension length/width/height (mm)
| 5995×1980×2950
|
Cargo body dimension (L*W*H)(mm)
| 3500×1880×400
|
GVW(kg)
| 6495(Kg)
|
Kerb Mass(kg)
| 3865 (Kg)
|
Rated mass(kg)
| 2500(Kg)
|
Approach angle/ Departure angle(mm)
| 19/15(°)
|
Front /rear suspension(mm)
| 1032/1663
|
Fuel Type
| diesel
|
Max Speed
| 90
|
Engine
| Type
| CY4100Q
|
Displacement/Power(kw)
| 3707ml/66KW/90hp
|
Manufacturer
| Chaochai
|
Type
| 4-in-line inter-cooling; intercooling
|
Chassis
| Drive Type
| 4×2
|
Wheelbase(mm)
| 3300
|
Tread(front/rear)
| 1506/1466(mm)
|
Transmission
| 5 forward gear,1 reverse gear, mechanical transmission
|
Braking system
| Air braking
|
Cab
| Dongfeng duolika single row driver cab
|
Number of spring axle(front/rear)
| 8/9+5
|
Tire Type
| 7.00R16
|
Air-condition
| Choose to fix
|
Upper part(cargo van and crane boom) main parameters
|
Upper body
| Cargo body dimension
| 3500×1880×400
|
Material
| Carbon steel
|
Side sheet thickness
| 2mm thickness
|
Bottom sheet thickness
| 3mm thickness
|
Painting
| Upon request
|
Crane boom main parameters
|
Crane boom
| Choose to install CLW brand BALONG 2T 2 sections knuckle crane boom
|
Lifting height
| 6.8m
|
Working radius
| 5.1m
|
The color of the whole truck is upon request.
|
>>
