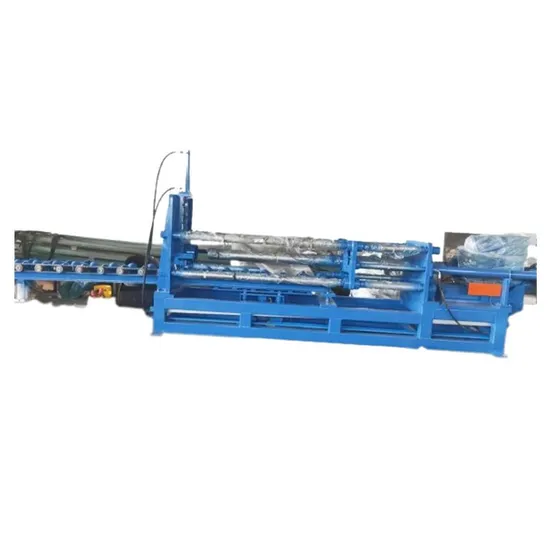

Inner Bottom Milling Machine for Gas Cylinder

US$59,999.00-99,999.00 1 Piece (MOQ)

Basic Info.

Model NO.
HLT
Type
Meter Milling Machine
Object
Cylinder
Structure
Bed type
Milling Cutter Type
Cylindrical Milling Cutter
Milling Cutter Structure
Indexable Type
Controlling Mode
CNC
Automatic Grade
Automatic
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Power Head Motor
Power 5.5kw
Tool Bar Speed
80rpm-200rpm
Material
30CrMo, 34CrMo4
Diameter
300mm--356mm
Length
800-2000m
Clamping Method
Hydraulic Clamping
Roller Reducer Model
Xwd1.5-4-47
Hydraulic Gear Pump Power
7.5kw
Adjustable Stroke
100mm
Cylinder Stroke
300mm
Transport Package
Wooden Box
Specification
3T
Trademark
HLT
Origin
Jiangsu

Product Description

Inner Bottom Milling Machine for Gas Cylinder
Product Description
1. Feed mechanism
PLC program control is adopted to realize the accurate positioning of the tool rod and the accurate control of the feed rate.
2. Clamping mechanism
The clamping mechanism realizes the positioning and fixing of the steel cylinder. The clamping power comes from two hydraulic cylinders at the head of the bed, with a stroke of 1450mm, which is suitable for clamping steel cylinders of different lengths.

Detailed Photos
Product Parameters
Power head motor power 5.5kW
Tool bar speed 80rpm-200rpm hanging wheel speed regulation
Clamping method hydraulic clamping, cylinder stroke: 1450mm
Roller reducer model XWD1.5-4-47
Hydraulic gear pump power 7.5kw
Hydraulic gear pump flow 46L/min
Adjustable stroke 100mm
Cylinder stroke 300mm

Power Head
The power head is located at the head of the bed and is driven by a motor with a power of 5.5kW. The output speed of the main shaft is adjustable and driven by variable speed gears. The main shaft transmission adopts tapered roller sealed bearings and cylindrical roller sealed bearings to ensure the stability and rigidity of the main shaft transmission.
Customer Visiting
Related Products

Cylinder stamping machine Hot spinning machine CNC threaded screw machine
Company Profile

LONGTERM is the manufacturer in the field of hot CNG Cylinder machinery in China, with a well established reputation for outstanding performance.
Recognized worldwide for its proprietary design and manufacturing know how. LONGTERM has been involved in this industry since 1990. We got here on the basis of providing strong support to clients who buy our machinery.
We are proud to offer these CNG cylinder machinery services. But more importantly, we're proud we've helped our customers meet their component manufacturing demands, to grow their business.
FAQ
Q: Are you a manufacturer or a trader?
A: Manufacturer
Q: Can the machine be customized?
A: Can be customized according to customer needs
Q: Is it possible to provide on-site installation and how about after-sales service?
A: Yes, we provide after-sales service and installation training services. The site service, such as installation and commission fee will be charged daily: USD100/day/person, the accomodation, food and transportation in Turkey should be at customers plus the return trip air tickets.
Q: Can third-party testing services be provided?
A:Yes BV, SGS, CE are all available
