Customized SINO TRUK HOWO 4*2 4T 116hp diesel cargo truck with crane for sale,
Customized SINO TRUK HOWO 4*2 4T 116hp diesel cargo truck with crane for sale, adopts SINO TRUK HOWO 2080mm width single row/one row and a half driver cab, YN4102QBZL 116hp diesel engine, 6 speed gearbox, 3800mm wheelbase, 2.7tons front axle/7.2tons rear axle, 7.50R16 rail tires, etc.
The dimension (L*W*H) of SINO TRUK HOWO 4tons cargo truck with crane is 4245/3895*2150,2300, 2400×550,600(mm); while the overall dimension(L*W*H) of SINO TRUK HOWO 4T cargo truck with crane is 7130×2350, 2500×3400,3500(mm). Client chooses to install 4tons telescopic/knuckle crane boom.
The boom truck is also called cargo crane truck, hydraulic crane truck, boom truck with crane, dump crane truck, etc. The boom truck is mainly used to lift and transport the constuction material, equipment or other large goods by municipal corporation, mining engineering department, plant department,etc
As a professional boom truck manufacturer in China, the crane capacity is from 2 ton to 160 ton. The drive type of chengli crane truck for sale are 4x2, 6x2, 6x4,8x4,etc. The truck mounted crane for sale are telescopic boom crane, knuckle boom crane.Also, Our crane trucks are 360 degree roatate. It is with high quality, long life, high speed, etc. The crane can be crane, chengli crane, sany crane, etc.
If you're interested in our truck with crane, please send email to truck0011@163.com or talk to Anita by Whatsapp/Wechat/Mob.: 0086 13329899995.

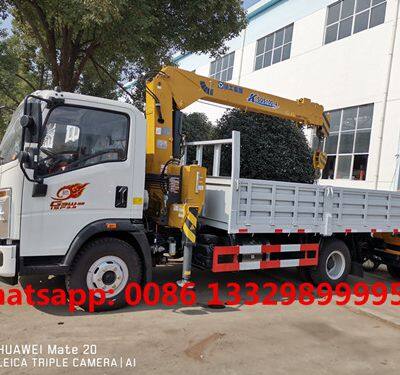

More pictures of SINO TRUK HOWO 4T cargo truck with crane boom is as below.
Main technical parameters of SINO TRUK HOWO 4T cargo truck with crane manufactured by Chengli Special Automobile Co., Ltd. is as below.
Product name
| SINO TRUK HOWO 4tons telescopic/knuckle crane boom mounted on truck for sale
|
Parameters
| Overall dimension length/width/height (mm)
| 7130×2350, 2500×3400,3500
|
Cargo body dimension (L*W*H)(mm)
| 4245/3895*2150,2300, 2400×550,600
|
GVW(kg)
| 9990 (Kg)
|
Kerb Mass(kg)
| 6295 (Kg)
|
Rated mass(kg)
| 3500 (Kg)
|
Approach angle/ Departure angle(mm)
| 18/17 (°)
|
Front suspension/rear suspension(mm)
| 1160/2170
|
Fuel Type
| diesel
|
Max Speed
| 95
|
Engine
| Type
| YN4102QBZL
|
Displacement/Power(kw)
| 3760ml/75hp
|
Manufacturer
| Yunnei
|
Chassis
| Drive Type
| 4×2
|
Wheelbase(mm)
| 3800
|
Tread(front/rear)
| 1585/1605 (mm)
|
Transmission
| 6 forward gear,1 reverse gear, mechanical transmission
|
Braking system
| Air braking
|
Cab
| SINO TRUK HOWO 2080mm wider single row/one row and a half drive cab
|
Number of spring axle(front/rear)
| 8/9+6
|
Tire Type
| 7.50R16
|
Air-condition
| Choose to fix
|
Upper part(cargo van and crane boom) main parameters
|
Upper body
| Cargo body dimension
| 4245/3895*2150,2300, 2400×550,600
|
Material
| Carbon steel
|
Side sheet thickness
| 2mm thickness
|
Bottom sheet thickness
| 2mm thickness
|
Painting
| Upon request
|
Crane boom main parameters
|
Crane boom
| Choose to install CLW brand 4T telescopic/knuckle crane boom
|
The color of the whole truck is upon request.
|
>>
