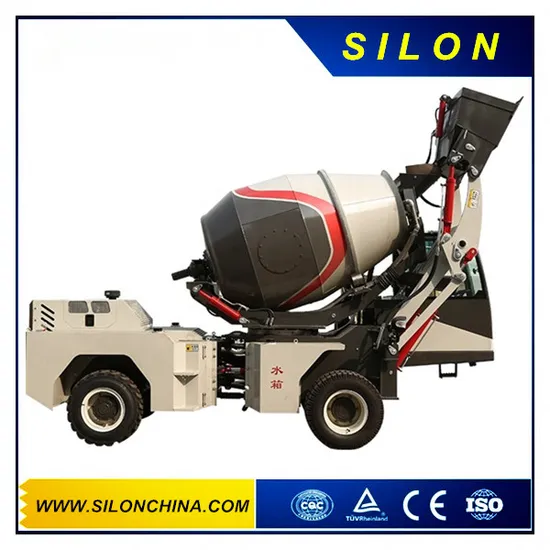

4.0cbm Automatic Feeding Mixer Concrete Batch Truck with Rotation Drum

US$43,000.00 1 Unit (MOQ)

Basic Info.

Model NO.

sy4.0

Machining Process

Hydraulic

Structure

Rotor Type

Productivity

4.0m3/H

Feeding Height

2000mm

Vibrating Amplitude

0.8mm

Certification

ISO9001: 2000, CE

Condition

New

Color

White

Concret Ouput

4.0m3

Front Shovel Capacity

5567L

Fuel Tank

280L

Type of Drive

4WD

Engine Model

Ycd4p22t-130

Rated Power

92kw

Drum Mixing Volume

4.0m3

Weight

8500kg

Speed

0-45km/H

Dimension

7220*2380 *3460 mm

Optional Engine

Cummins ( EPA)

Wheel Drive

4X4

Transport Package

Nude

Specification

CE, ROHS, SGS, CCC, ISO,

Trademark

SILON

Origin

Luoyang, China

HS Code

8705400000

Production Capacity

500 Units/Month

Product Description

Silon Concrte Feeding mixter Truck Features
1:Lead design, automatic feed mixing system.
2:Easy to operate.
3:Efficient output, saving time and effort, saving cost.
4:Mixing tanker and loader, the transport car is a perfect combination of three and one.
5:Guarantee 6 months, perfect after-sale service.
6:290-degree rotating mixing tank discharge.
Techncial Parameters

Drum Capacity	5567L
Discharing Height	2.0m
Production Capacity	4.0m3/h
Engine	YCD4P22T-130
Transmmsion	Turquo Converter, 4WD
Walking Speed	Low Speed :0-25km/h High Speed: 0-45km/h
Cabin	Lef-Hand Drive ,Rops, Front Loading Shovle
Hydraulic System	Chinese Hydrulic System
Discharing Direction	180 Degree Rotation (90 Degree Each)
Operation Lever	Electrionilly Control Four-Speed Joystick
Bucket Capacity	500L
Chute	Hydraulic adjustable angle, in order to increase Discharing Length
Water Supplyer System	Hydraulic DriveN Auto-Priming Pump, washing vehicel with high pressure water pump,Electrionilly Control Auto-Priming Pump, Sprinker 100L/min
Brakes	Air Brake Dual Independence Circurs
Tyre	12-16.5-12PR
Power System	24V
Fuel Tanker	280L
Hydraulic Oil Tanker	280L
Opeartiton Weight	9800kg
Dimension	7220 × 2380 × 3460mm

Detailes Photo of the mini Concrete Feeding Mixer Truck ( HK1.2)
Our Factroy and workshop:
Our Contact Information
Our Certificaiton
