US$13.00-35.00
|
10 Pieces
(MOQ)
|
Basic Info.
Performance
Sophisticated Filters
Certification
CE, GS, RoHS, CB, LFGB, UR, EMF, EMC, SASO
Max. Operating Temperature
80ºC
Sealing
Silicone, EPDM, FKM, E-FKM
Max. Operating Dp
3.0 Bar@ 80ºC
Application Type
Liquid Treatment
Test
100% Integrity Tested
Filtration Rate
as Your Customize
Transport Package
Individual Poly Bag and Box
Specification
20", 40", 60"
Production Capacity
1500PCS/Day
Product Description

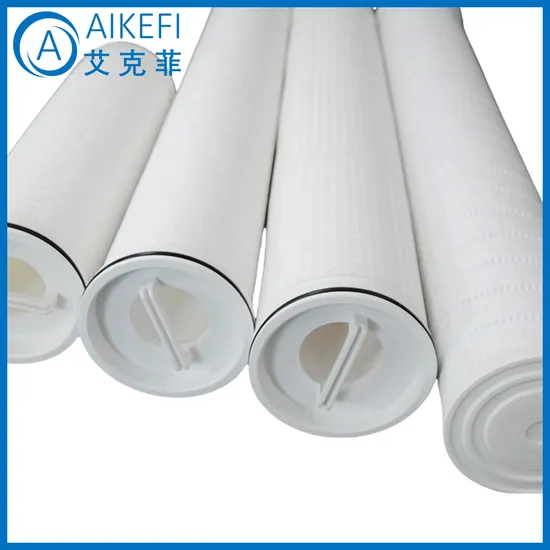

Product DescriptionHFV series cartridge, the cartridge for the coreless large diameter cartridge, cartridge filtration medium with polypropylene and polyester felt two media, fluid flow from the inside to the outside to ensure that the pollutants are intercepted in the cartridge, large diameter and large filtration area can reduce the size of the filtration system, while reducing the number of replacement of the cartridge, the handle is also convenient to quickly replace the cartridge. This series of cartridges are widely used in the petroleum industry, natural gas system and paper industry, etc. They can also be used for water treatment of epoxy resin, acid and alkali solutions.
Product Parameters
| Diameter | 6"/152mm |
| Length | 20", 40",60"or up to customers'requirements |
| Filter media | Polypropylene (PP),PET(Polyethylene terephthalate) |
| End cap | Glass fiber reinforced PP |
| Gasket | EPDM,Buna N U,Buna N O,Nordel |
| Netting | PP |
| Removal Rating | 1μm,2μm, 10μm,25μm ,50μm,100μm |
| Maximum operating temperature | 82°C |
| Maximum differential pressure | 5.0 Bar at 20°C |
| Maximum filtered water flow | 1000LPM |
Hfv series model
| HFV640 | HFV660 |
| HFV640PE001AH | HFV660PE001AH |
| HFV640PE005PH13 | HFV660PE005AH |
| HFV640PE010AH13 | HFV660PE005PH |
| HFV640PP001AH | HFV660PE010AH |
| | HFV660PP025PH |
| | HFV660PP100PH13 |
Applications
Oil & Gas: Condensate feed, gas filtration, natural gas transportation pipelines, wastewater filtration, frac water treatment, produced water, general disposal well protection, diesel, gasoline, kerosene, LPG end product filtration, hydrotreater feed filters, amine circuit filters.
Chemicals: epoxy resins, disposal wells, feed streams, industrial resins and coatings, pesticides, acids, bases, solvents, silicone solutions, water treatment, end products, tank truck loading and unloading.
Pulp and Paper: white liquor, black liquor, deionized water, showers, bleach tower treated water treatment.
Paint in Automotive: Paint raw materials, intermediates, end products.
Features:
--Portable replacement cartridge
--High flow rate filtration
-Long service life
-High dirt-holding capacity
FAQ1. Q: When can I get the quotation?
We usually quote within 24 hours after we get your inquiry.If you are very urgent to get the price, please call us or tell us from your email,so that we will regard your inquiry priority.
2. Q: Do you Accept OEM service?
A: Yes! we can manufacture according to your requirement.
3. Q: What kinds of filter do you produce?
A: High flow filter cartridge ,wire water filter, pleated filter cartridge,security filter equipment ,RO Membrane Element and RO Equipment, and so on. You can turn to us for any kinds of filters and filter related parts.
4. Q: How do you pack products?
A: Standard exporting carton,wooden, pallet, customized.
5. Q: how long it your lead time?
A: Air shipment orders can be ready in 5 working days, sea shipment orders can be ready in 10 working days.
6. Q: What is your terms of delivery?
A: We accept EXW, FOB, CIF, etc. You can choose the one which is the most convenient or cost effective for you.
7:Q: How should I place an order?
A:Please kindly click" send inquiry" or "contact supplier", Then our sales engineer will recommend you suitable products for your selection also give some valuable suggestion for your selection.
>>
