Basic Info.
Product Name
Light Automatic Folding Handicap Mobility Scooter
Scooter Unfold Size
970*500*960mm
Folded Size
410*500*710mm
Colour
Red/Blue/White/Grey
Transport Package
One Mobility Scooter/Box
Specification
12AH Folding mobility scooter
Origin
Nanjing, Jiangsu, China
Production Capacity
1000 PCS/Month
Packaging & Delivery
Package Size
53.00cm * 45.00cm * 74.00cm
Package Gross Weight
29.000kg
Product Description

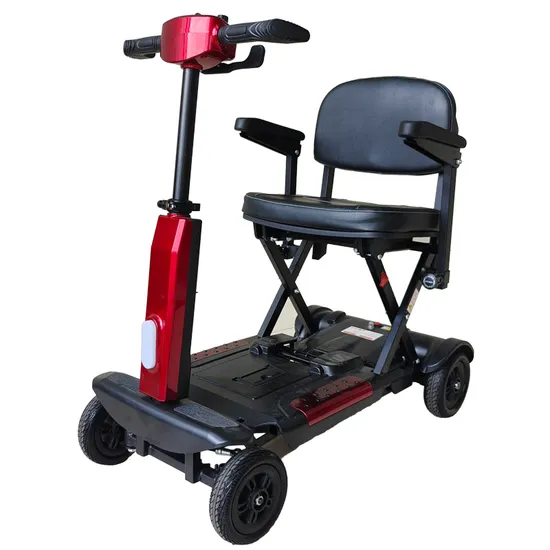

Aluminium lightweight 4 wheel remote control automatic folding handicapped mobility scooter Product Description
L26A Aluminium remote control Automatic folding 4 wheel electric mobility scooter Futures:
Light aluminium alloy frame. Total scooter is 24kg. Removable lithium battery, convenient to take. Allowed to take on air plane. Folded small size to put into car trunk. Two ways to auto-fold the scooter(scooter button auto fold/remote auto fold). L23A is automatic folding/L23M is manual folding. Detailed Photos
Product Parameters
L23A Aluminium lightweight 4 wheel remote control automatic folding handicapped mobility scooter Parameters:
| Model | L26A/L26M |
| Frame material | aluminium alloy |
| Unfold size | 970*500*960mm |
| Folded size | 410*500*710mm |
| Max load capacity | 120kg |
| Max speed | 0-7km/h |
| Max drive distance | 15km |
| motor | 24V180W |
| Controller | 24V/45A |
| Lithium battery | 24V10AH |
| charger | 24V/2A |
| Brake system | Electromagnetic brake |
| Safe gradient | 0-12° |
| Front tires | 7" PU solid |
| Rear wheel | 8" PU solid |
| Driving system | Rear wheel drive |
| Turning radius | 1.4m |
| Ground clearance | 75mm |
| Net weight | 24kg (with battery) |
| Gross weight | 27kg |
| Folded way | L26A: Button auto fold and remote auto fold L26M:Manual fold |
| Package size | 520*440*730mm |
Certifications CE,UKCA,ISO13485, ROHS.
Company Profile
FAQ Q1: Why Choose Aishun Green Tech. Products?
We are one of the professional wheelchair and scooters factory here in China,
Best production capability ,Best quality control, Best Service,
Q2:What is your MOQ(Minimum Order Quantity ?
As a factory, our MOQ is a one piece sample, it could be mixed the different models for containers.
Q3: Payment and shipment?
We accept: L/C, T/T, Paypal.
Delivery time: Within 20 Work days upon the order confirmed.
Q4: Warranty
Motor, battery and controller are one year; frame is 3 years.
>>
