US$4,000.00-5,000.00
|
1 Set
(MOQ)
|
Basic Info.
Function
Hollow out, Cutting, Line Engraving, Intaglio, Basso-relievo, Lettering
Application Material
Granite
Engraving Head Speed Adjustability
Wide Adjustable Range
Application
Glass, Ceramics, Decoration, Advertising, Art & Craft, Stela & Gravestone, Stone Industry
Spindle Power
5.5kw Water Cooling Spindle
Application Work
Stone Engraving Cutting Machine
Control System
DSP Controller
Working Table
Aluminum Table with Good PVC
Driver System
Stepper/Servo Motor and Driver
Rail Guide
Taiwan Hiwin Square Rails
Transport Package
Stretch Film and Plastic Film and Plywood Case
Specification
1300*2500mm
Production Capacity
200 Sets/Month
Packaging & Delivery
Package Size
380.00cm * 228.00cm * 180.00cm
Package Gross Weight
1200.000kg

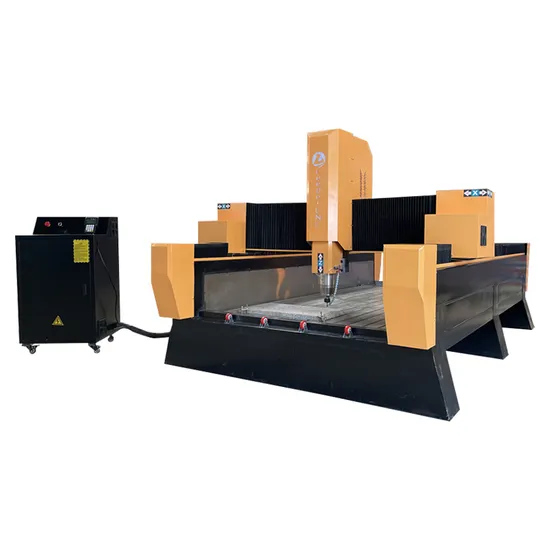

Product Description
Machine Features
1. It is designed for all kinds of stone, and it can be used for carving marble, granite and other stones.
2. The table has a sinking design, which can make the stone CNC machine run more smoothly.
3. The Z-axis motor has a brake function, which can prevent the machine head from falling and hitting the table.
4. The dustproof design prevents debris from entering the guide rail, effectively prolonging the service life of the guide rail.
5. With a movable rotary device, it can be used for engraving cylindrical workpieces.
6. Strong compatibility: compatible various CAD/CAM software like Type3/artcam/castmate/proe/Corelerow/Wentai.
Product Parameters
| Model | LES-1325 |
| Working Size | 1300*2500mm | 4*8ft |
| Spindle Power | 5.5kw water cooling spindle |
| Spindle Speed | 0-24000RPM |
| Driver System | Stepper / servo motor and driver |
| Control System | DSP controller |
| Working Table | Aluminum table with good pvc |
| Rail Guide | Taiwan HIWIN Square rails |
| Ball screw | TBI ball screw from Taiwan |
| Inverter | Fuling Inverter |
| Water Tank | Stainless steel water tank |
| X,Y,Z repositioning Positioning | ±0.02mm |
| Command Language | G code |
| Interface | USB |
| Software | Artcam/Type3,other CAD/CAM |
| Voltage | AC380V/50-60Hz,3PH (Option: 220V/1phase) |
Detailed Photos
Sample & Application
Suitable for big size hard materials such as Marble, Granite, Artificial stone,Tombstone, Ceramic tiles,Glass, etc, can be engraved by such machine, to produce arts and crafts, pictures, etc.
This machine can be also used to work on Wood, Advertising materials, mold, relief sculpture, 3D engraving & Cylinder object engraving.
Packaging & Shipping
1. Inner package: Stretch film and and plastic film for humidity
2. Outside package: Standard export plywood case
Company Profile
Jinan LEEDER CNC Technology Co.,Ltd. is one professional CNC machines manufacturer in Jinan City, capital of Shandong Province, China. All our machines are passed CE, I S O 9 0 0 1 certification to make sure the quality, and machines also support OEM, ODM customization.
We have professional sales team and after-sales team, with professional product knowledge, enthusiastic service attitude to win the trust and cooperation of global customers, our products are selling well widely all over the world and have good reputations. "LEEDER" CNC has become a leading brand in this filed.We export to USA,Canada,Russia,Australia,Europe,Brazil,Mexico,South Africa and other more than 100 countries.
>>
