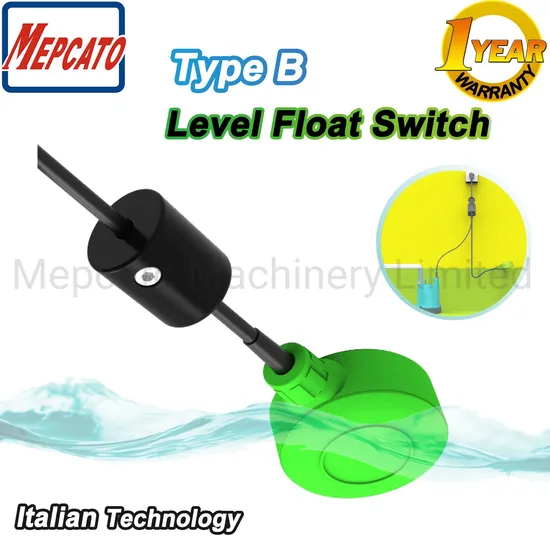

Electric Automatic Water Level Control Ball Float Switch Level Regulator Liquid Level Sensor for Submersible Water Pumps Pump Stations Tanks Aquariums Pools

Product Description

Description

Applications ▪ Suitable for non-potable water, non-corrosive
liquids.
▪ Filling up and emptying out tanks and cisterns,
such as aquarium, fish farms, swimming pool.
▪ Level control and regulation.
▪ Pump, pumping stations.
▪ Level warning by initation of high or low level
alarms.

Product Parameters

Casing	ABS plastic
Cabel	H07RN-F 3x1.0mm2
Cabel Length	3m, 5m, 10m as standard
Counterweight	Aluminum Alloy, 280G
Max depth	10M
Activation Angle	45º
Protection Grade	IP68
Working Temperature	Max +40ºC
Power Supply	Max. 10(8)A, 125/250V AC
Certification	CE

Operation Conditions

Packaging & Shipping
Company Profile
Our Advantages

1. Highly efficient motor design for 24 hours continuous duty use.
2. Adopt Italian imported mechanical seal for double waterproof protection.
3. Design with Oil Chamber, provides for the most durable seal design, lubrication and cooling.
4. Motor with Thermal Protector to prevent motor failure due to pump problem or accidental run-dry conditions.
5. Internal wires connect by terminal design, solid and reliable.
6. Power cable rubber seal designed by filling epoxy to raise humidity-resistance.
7. Each pump with laser printed serial number to record the production date.
8. All pumps are 100% tested in pump head line and completed pump production line.
9. The special test all the pumps will perform is the low voltage start-up test.
