Cycjet Lu10f UV Laser Marking Machine for PE Caps

US$30,000.00 1 Set (MOQ)

Basic Info.

Model NO.
LU10F
Cooling System
Water Cooling
Technical Class
Pulse Laser
Laser Wavelength
Deep Ultraviolet
Laser Classification
Solid Laser
Type
UV
Marking Method
Scanning Marking
Name
Laser Marking Machine
Application
Bottle Caps, Bottle
System Language
English
Cooling
Air
Pulse Frequency
20 kHz - 100 kHz
Marking Range
110 mm X 110 mm (Can Be Customized)
Standard Package
Wooden Case
Weight
110kgs
Transport Package
Wooden Case with Foam
Specification
155X55X56cm
Trademark
CYCJET
Origin
Shanghai
HS Code
8456110090
Production Capacity
300units/Month

Product Description

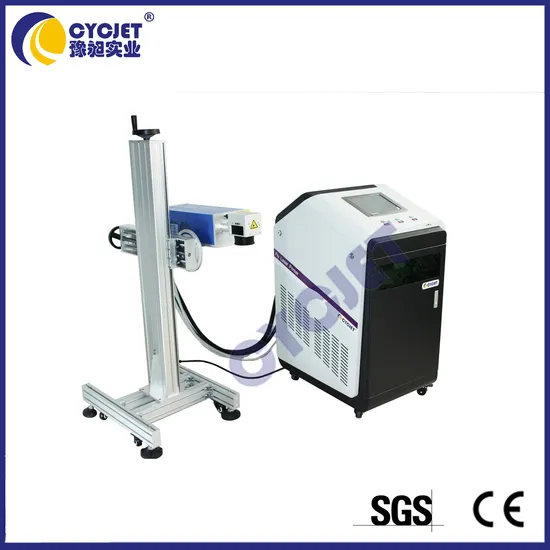

Product Picture:
Application Scope:
Suitable for electronic components, electrical products, IT industry, auto parts, hardware tools products, precision instruments, gift accessories, medical equipment and other high-end products of precision, fine logo printing. Typical applications such as, plastic (PA66) insulation flying laser marking, metal plate laser marking, packing box body online laser marking, etc.
Advantage: 1, Perfect design software, easy to learn and operation2, Less Mechanical Faliure3, Operation Status: Fly and Standstill4, The PVC, PPR,PE Pipe Code will change color after mark,the demonstration of effects is better than ink priter. 5, The code can not move or erase it6, No consumer goods, less production cost Terms Of Payment: T/T, LC After-sale Service 1, Warranty Valid: 18 Month2, Online or Spot Training
Details and Specifications:
Specifications Output Power: 10W
Beam quality M2: <2
Laser wavelength: 355 nm
Air cooling
Pulse frequency: 20 KHZ - 100 KHZ
Marking range:
110 mm x 110 mm (can be customized)
MarkingSpeed:7000mm/s
Marking Depth: ≤0.3mm
Marking Line Width: 0.01-0.2mm (based on difference material)
Min character Size: 0.015mm.
Repeat accuracy: + / - 0.003 mm
Marking area locating: Red-light locating system.
Power supply:
AC 100-260 v 50/60 hz
Power: ≤800W
Delivery&Package Delivery Time: 3-7 days after received Advance Payment
By Vessel or Air Plane
Standard Package: Wood Carton, Carton Box
