US$40,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Type
Amphibious Excavators
Usage
Special Excavator, Marine Excavator, Mining Excavator, GM Excavator
Transmission
Hydraulic Transmission
Drive Type
Electric Drive
Certification
CE, ISO9001: 2000
Transport Package
Sea Transportation
Production Capacity
500pices
Packaging & Delivery
Package Size
9000.00cm * 1700.00cm * 1900.00cm
Package Gross Weight
17000.000kg
Product Description

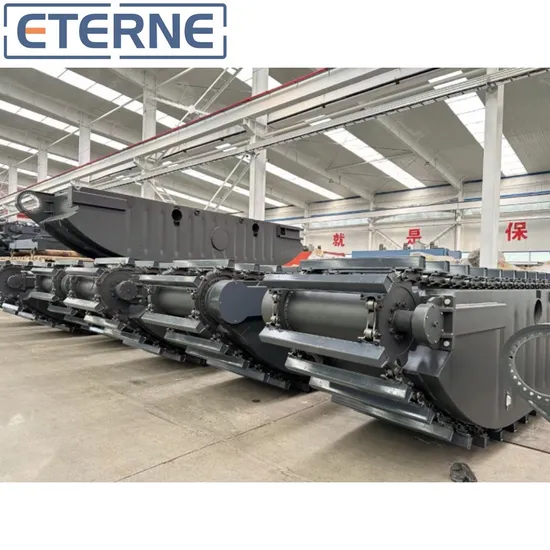

20 tons Excavator Floating Body Amphibious Excavator Pontoons
| Position | Description | Parameters of Standard Boom |
| A | Undercarriage Length | 8500mm |
| B | Counterweight Ground Clearance | 2035mm |
| C | Overall Height ( to the top of the cab) | 3990mm |
| D | Overall Height ( to the top of the boom) | 3970mm |
| E | Overall Length | 11721mm |
| F | Tail Turning Radius | 2794mm |
| J | Track Gauge | 3500mm |
| H | Overall Width | 5400mm |
| I | Pontoon Width | 1500mm |
| J | Minimum Ground Clearance | 1170mm |
| K | Pontoon Height | 1840mm |
| L | Cab Width | 2990mm |
| M | Pontoon Grounded Length | 5150mm |
Pontoon Length
| 8500mm
| single
| 8500mm
| after connected
|
Pontoon Width
| 1800mm
| single
| 5160mm
| after connected
|
Pontoon Height
| 1840mm
| single
| 1840mm
| after connected
|
Upper excavator
| ET |
Pontoon Material
| Q345 Reinforced Steel
|
Thickness of pontoon
| Bottom 6mm, Side 4mm
|
Travel motor assembly
| Doosan TM40VC x 4
|
Material of chain
| 40Cr Hard-wearing steel
|
Pontoon dimension
| 8500 x 1800 x 1840mm - single 8500 x 5160 x 1840mm - after connected
|
Successful Case
ShanDong Eterne Mining Machinery Co.,Ltd.
1, Is large manufacturer service company,Specialized in designing,manufacturing, installing of amphibious excavators equipments
2,Our company was founded in 2015 year as one of leading manufacturer of gold mining equipment in China .
3,Main Products: Gold trommel, centrifugal concentrator, vibrating sluice, clay washer, vibrating screen, gold dredger etc.was well sold both home and abroad.
4,Exported to Russia, Laos, Vietnam, Kazakhstan, Tajikistan, North Korea, the Philippines, Mon golia, Myanmar, Papua New Guinea, Indonesia, Fiji, South Africa, Ghana, Benin,
FAQ
Q1:What about the delivery?
We can offer our equipment by containers or bulk ship, just depend on your actual request.
Q2:What is the warranty?
We provide 1 year warranty and free repair if quality problems emerge within warranty peride.
Q3:What's the payment methode?
We can accept T/T, L/C, WESTERN UNION and so on.
Q4:Is it factory?
Yes,we have our own factory.And welcome to visit our factory.
Q5.Whether it can be customized according to customer requirements?
Yes,we can design according to customer's requirement,we have many kinds of model.
You can choose the suitable one.
>>
